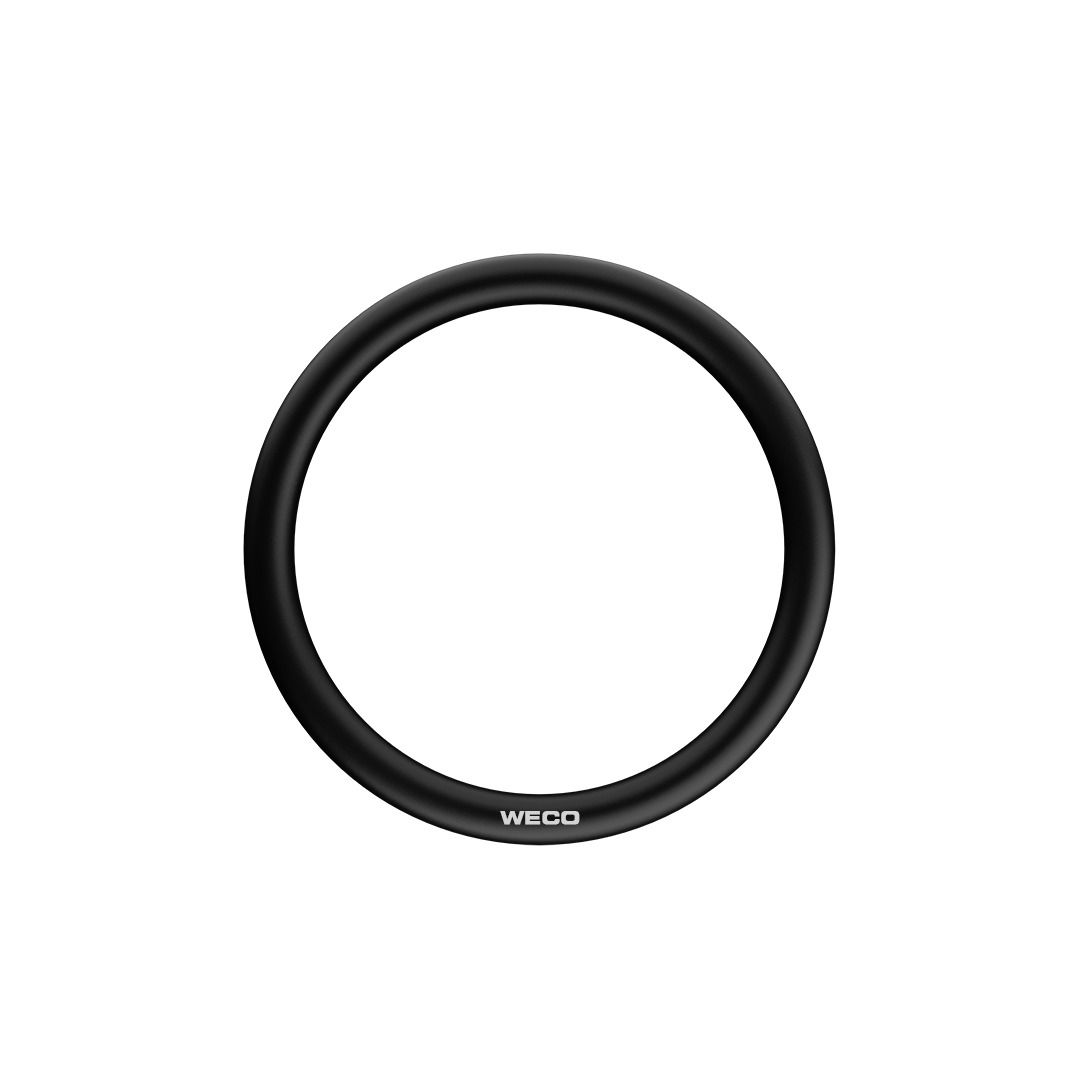

Polaris Scientific UV-SEAL Seal for Sleeve & Nut

SKU
UV-SEAL
Be the first to review this product
Price: $3.53
In stock
- +
  • For Polaris Scientific UV Models UVA-1C to UVA-200B & High Output Models UVA-418HO/ 630HO/ 946HO.

Description:

Polaris Scientific Ultraviolet systems provide a sleek, compact design and economical ultraviolet water treatment for low flow and medium flow applications such as: light commercial reverse osmosis systems, water vending machines, food industry, laboratory, medical facility water, pharmaceutical, cosmetic processes, final electronic component rinsing and recirculation loops to name a few. Polaris Scientific Ultraviolet systems produce little change in water temperature even after prolonged periods of no water flow, making them ideal for many application requirements.

Effectively Destroys 99.9% of Waterborne Microorganisms.

SAFE

  • No need to handle toxic or corrosive chemicals or by-products.
  • Microbiologically free water without the use of potentially dangerous chemicals.
  • UV imparts no change in taste, odor, pH or conductivity.
  • No trihalomethanes (THM's) formation.

SIMPLE

  • Fast and simple installation with three connections (two water and one electrical).
  • Maintenance involves annual lamp replacement (provided water quality parameters are met).
  • Automatic unattended and user friendly operation.

EFFICIENT

  • Compact units with 304 or 316 (upon request) stainless steel reactor chamber, polished for laboratory and medical use, require minimum space.
  • Microorganisms are inactivated within seconds; eliminates the need for long retention times or retention tanks.
  • Very low power consumption less than 40-watt bulb to effectively treat from 1 to 100 gallons per minute (depending on UV model).
  • High output low pressure mercury vapor lamps with high isolation pin.
  • Little change in water temperature even after prolonged periods of no water flow.
  • Open end high quality quartz sleeve and stainless steel gland units.

ECONOMICAL

  • No moving parts to wear out of break.
  • Lower capital investment when compared to chlorine or ozone system.

E. Coli

Giardia

Viruses



Specifications

Part
Number
GPM
(LPM)
Rated
Life (hrs)
Lamp
Watts
Voltage at
50/60HZ
Visual
Warning
Audible Warning Port size I/O Water
Chamber
Timer
UVA-1C 1 (3.8) 9,000 10W 110V/220V LED BUZZER 1/4" MNPT (.635 cm) STAINLESS 304
UVA-2C 2 (7.57) 9,000 10W 110V/220V LED BUZZER 1/4" MNPT (.635 cm) STAINLESS 304
UVA-6C 6 (22.71) 9,000 24W 110V/220V LED INDICATOR W
/ ALARM
1/2" MNPT (1.270 cm) STAINLESS 304
UVA-8C 8 (30.28) 9,000 32W 110V/220V LED INDICATOR W
/ ALARM
3/4" MNPT (1.905 cm) STAINLESS 304
UVA-12C 12 (45.42) 9,000 39W 110V/220V LED INDICATOR W
/ ALARM
3/4" MNPT (1.905 cm) STAINLESS 304
UVA-24B 24 (90.85) 9,000 39W 110V/220V LED INDICATOR W
/ ALARM
1" MNPT (2.540 cm) STAINLESS 304
UVA-36B 36 (136.27) 9,000 39W 110V/220V LED INDICATOR W
/ ALARM
1.5" MNPT (3.810 cm) STAINLESS 304
UVA-50B 50(189.27) 9,000 39W 110V/220V LED INDICATOR W
/ ALARM
1.5" MNPT (3.810 cm) STAINLESS 304
UVA-60B 60 (227.12) 9,000 39W 110V/220V LED INDICATOR W
/ ALARM
2" or 2.5" MNPT (5.080 or
6350 cm) FLANGE
STAINLESS 304
UVA-80B 80 (302.83) 9,000 39W 110V/220V LED INDICATOR W
/ ALARM
2" or 2.5" MNPT (5.080 or
6350 cm) FLANGE
STAINLESS 304
UVA-100B 100 (378.54) 9,000 39W 110V/220V LED INDICATOR W
/ ALARM
2" or 2.5" MNPT (5.080 or
6350 cm) FLANGE
STAINLESS 304
Maximum Concentration Levels
Iron < 0.3 ppm (0.3 mg/L)
Hardness < 7 gpg (120 mg/L)
Turbidity < 1 NTU
Manganese < 0.05 PPM (0.05 mg/L)
Tannins < 0.1 ppm (0.1 mg/L)
UV Transmittance > 75%

Effectively treating water with higher concentration levels than listed above can be accomplished with WECO reverse osmosis, katalox light and/or cation softening upstream of UV. Chat with us to discuss options.

Function of a UV Disinfection Reactor

Note: Your product may look different from the illustration

Parts & Accessories
Part
Number
Lamp Quartz
Sleeve
Electronic
Ballast
Additional Accessories Specific to your UV System
UVA-1C GL10PP QS10 BEB-1024 UV-NUT-1 - - UV-SEAL UV-PLUG
UVA-2C GL14PP QS14 BEB-1024 UV-NUT-1 - - UV-SEAL UV-PLUG
UVA-6C GL24PP QS24 BEB-2439 UV-NUT-1 / UV-NUT-2 - - UV-SEAL UV-PLUG
UVA-8C GL32PP QS32 BEB-2439 UV-NUT-1 / UV-NUT-2 UV-32 SPRING - UV-SEAL UV-PLUG
UVA-12C GL39PP QS39 BEB-2439 UV-NUT-1 / UV-NUT-2 UV-39 SPRING - UV-SEAL UV-PLUG
UVA-24B GL39PP QS39 BEB-2439 UV-NUT-1 / UV-NUT-2 UV-39 SPRING UV-TIMER UV-SEAL UV-PLUG
UVA-36B GL39PP QS39 BEB-2439 UV-NUT-1 / UV-NUT-2 UV-39 SPRING UV-TIMER UV-SEAL UV-PLUG
UVA-50B GL39PP QS39 BEB-2439 UV-NUT-1 / UV-NUT-2 UV-39 SPRING UV-TIMER UV-SEAL UV-PLUG
UVA-60B GL39PP QS39 BEB-2439 UV-NUT-1 / UV-NUT-2 UV-39 SPRING UV-TIMER UV-SEAL UV-PLUG
UVA-80B GL39PP QS39 BEB-2439 UV-NUT-1 / UV-NUT-2 UV-39 SPRING UV-TIMER UV-SEAL UV-PLUG
UVA-100B GL39PP QS39 BEB-2439 UV-NUT-1 / UV-NUT-2 UV-39 SPRING UV-TIMER UV-SEAL UV-PLUG

Product Rating

Warranty Information

  • Limited 5-year warranty on stainless steel housing
  • Limited 1-year warranty on electronics

Manufactured by

P.O. Box 2235
Chino Hills, CA 91709 USA
