- Universal Water Softening: Standard 10% cross-linked resin, ideal for both home and commercial water softener systems. Recharges with common salt.
- Scale Prevention: Eliminates mineral scale buildup on sinks, faucets, shower doors, and plumbing fixtures.
- Clog Reduction: Prevents mineral deposits from clogging shower heads and faucet aerators.
- Easier Cleaning: Significantly reduces scrubbing and cleaning time for bathtubs and showers.
- Spotless Dishes: Minimizes white deposits on silverware and glassware.
- Kitchen Clarity: Eliminates hard water spots in residential and commercial kitchens.
- Efficient Laundry: Improves washing machine cleaning and reduces detergent usage.
- Hotel Hospitality: Simplifies cleaning in hotel showers and sinks, enhancing guest experience.
- Industrial Applications: Functions as a plating rinse metals scavenger and provides hardness removal for reverse osmosis systems.

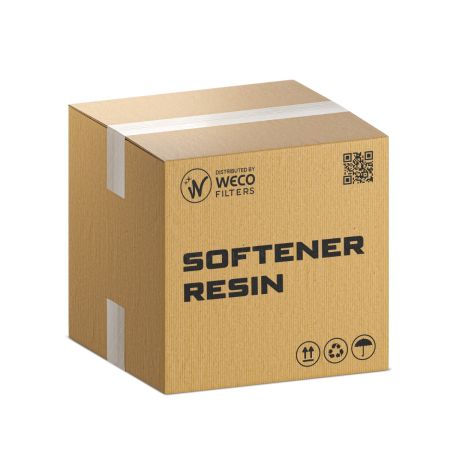

- One Cubic Foot Bag: Conveniently packaged for easy replacement and refilling.
Distributed by WECO Cation Series oxidation resistant, high temperature SOFTENING
10% Crosslinked Strong Acid Cation (Na+ form)
Physical and Chemical Properties
| Polymer Structure | Styrene/ divinylbenzene 10% DVB gel | ||||||
| Functional Groups | Sulfonic Acid | ||||||
| Ionic Form as Shipped | Sodium (Na+) | ||||||
| Physical Form | Tough, spherical gold or black beads | ||||||
| Sphericity | 98% WPB | ||||||
| Total Capacity | 2.1 meq/ml (Na form) 45.3 Kgr/cu ft | ||||||
| Screen Size Distribution: | |||||||
| |||||||
| Uniformity Coefficient | 1.5 (max) | ||||||
| Moisture Content | 42-45% (Na+) | ||||||
| pH Range Stability | 0-14 | ||||||
| Temperature Limits | 150oC (300oF) Na form | ||||||
| Shipping Weight | 53 lbs per cubic foot | ||||||
| Packaging | 28.32 liter (1 cu ft) bags | ||||||
Chemical Stability
Softening resin is insoluble in moderately concentrated acids and bases. The highly cross-linked gel structure is very resistant to oxidizers such as peroxide, chlorine and ozone. Resin can also operate at elevated temperatures and is well suited for hot water softening
Resin Features and Benefits
Major Applications the superior strength of softening resin makes it an ideal candidate for:
Industrial Softening (Na+ form)
Industrial De-mineralization (H+ form)
High TDS, high temperature softening
Condensate Polishing
Plating rinse metals scavenger.
High Whole Bead Counts
Resin has a 98% whole perfect bead count: lower pressure drop in service, no losses on backwash, more uniform flow distribution
Superior Physical & Oxidation Stability
The 98% plus sphericity and toughness of resin provides greater resistance to bead breakage with age and resists oxidation from chlorine, chloramine and other oxidants such as ozone and peroxide
Universal Utility
Safety Information
A material safety data sheet is available for resin. Copies can be obtained from WECO Filters. Softening resin is not a hazardous product and is not WHMIS controlled.
Water Softener Resin Refill Guide
| Size (Diameter X Height) | Total Volume | Softening Media | ||
|---|---|---|---|---|
| Inches | mm | Gallons | Liters | Ft3 |
| 6 x 18 | 152 x 457 | 1.8 | 6.8 | 0.30 |
| 7 x 13 | 177 x 330 | 1.9 | 7.2 | 0.15 |
| 7 x 17 | 177 x 431 | 2.5 | 9.5 | 0.30 |
| 7 x 35 | 177 x 889 | 5.2 | 19.7 | 0.50 |
| 7 x 44 | 177 x 1117 | 6.4 | 24.2 | 0.60 |
| 8 x 17 | 203 x 431 | 2.9 | 11.0 | 0.33 |
| 8 x 35 | 203 x 889 | 6.6 | 25.0 | 0.55 |
| 8 x 44 | 203 x 1117 | 8.7 | 32.9 | 0.75 |
| 9 x 35 | 228 x 889 | 8.3 | 31.4 | 0.80 |
| 9 x 48 | 228 x 1219 | 12.7 | 48.1 | 1.00 |
| 10 x 17 | 254 x 431 | 4.4 | 16.7 | 0.50 |
| 10 x 35 | 254 x 889 | 10.2 | 38.6 | 0.75 |
| 10 x 44 | 254 x 1117 | 13.1 | 49.6 | 1.00 |
| 10 x 54 | 254 x 1371 | 16.4 | 62.1 | 1.50 |
| 12 x 48 | 304 x 1219 | 21.0 | 79.5 | 1.60 |
| 12 x 52 | 304 x 1320 | 22.2 | 84.0 | 1.75 |
| 12 x 65 | 304 x 1651 | 28.0 | 106.0 | 1.85 |
| 13 x 54 | 330 x 1371 | 27.5 | 104.1 | 2.00 |
| 14 x 65 | 355 x 1651 | 40.6 | 153.7 | 3.00 |
| 16 x 65 | 406 x 1651 | 49.0 | 185.5 | 4.00 |
| 18 x 65 | 457 x 1651 | 66.7 | 252.5 | 5.00 |
| 21 x 62 | 533 x 1574 | 88.0 | 333.1 | 7.00 |
| 24 x 72 | 609 x 1828 | 126.8 | 479.9 | 10.00 |
| 30 x 72 | 762 x 1828 | 195.5 | 740.0 | 15.00 |
| 36 x 72 | 914 x 1828 | 283.0 | 1071.2 | 20.00 |
| 36 x 94 | 914 x 2388 | 318.0 | 1203.6 | 30.00 |
| 42 x 72 | 1066 x 1828 | 290.6 | 1099.9 | 30.00 |
| 48 x 72 | 1219 x 1828 | 477.7 | 1808.1 | 40.00 |
| 48 x 94 | 1219 x 2387 | 657.1 | 2487.1 | 40.00 |
| 60 x 94 | 1524 x 2387 | 710.2 | 2688.1 | 60.00 |
| 60 x 110 | 1524 x 2794 | 896.2 | 3392.1 | 75.00 |
| 63 x 70 | 1600 x 1778 | 687.0 | 2600.3 | 60.00 |
| 63 x 83 | 1600 x 2108 | 832.3 | 3150.3 | 70.00 |
