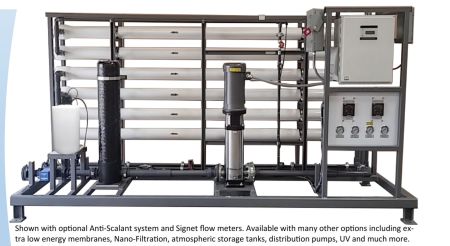

- Horizontal Powder Coated Frame Mounted Reverse Osmosis System.
- 25,000+ GPD Production ; 16 @4"x40" High Pressure Membranes.
- Power 220V/60Hz
- Stainless steel multi-stage pump. 80" Membrane vessel. Schedule 80 PVC piping.
- Liquid filled pressure gauges. Liquid-tight wire shrouding. Stainless steel solenoid valve.
- Adjustable waste/recycle S.S. globe valves.
- Product/waste/recycle flow meters. High recovery rate. Individual sample valves.
- 4 line LCD display. Keypad. Menu system. Inlet temperature and TDS display. Tank full indicator.
- Hour meter. Time delay start. Dual tank level control. Enpress pre-filtration.
- IEC contactor w/ motor overload relay.
- Made in U.S.A.
- Pre/post treatment not included. Please contact us at sales@wecofilters.com with a water analysis before ordering. Lead time 60 days.
- Professional installation required.
- Horizontal Powder Coated Frame Mounted Reverse Osmosis System
- 25,000+ GPD Production ; 16@4"x40" High Pressure Membranes
- Power 220V/60Hz
- Made in U.S.A.
- Pre/post treatment not included. Please contact us at sales@wecofilters.com with a water analysis before ordering. Lead time 60 days.
- Professional installation required.
Horizontal Powder Coated Frame Mounted 12,000+ GPD (8@4x40) Reverse Osmosis System 220/60 (Base system only as described. ~GPD rating +/- 15% based on 77F. Limited or no pre/post treatment, accessories, options or on site assistance included. Item may not be changed, cancelled or returned)
Feed Water Parameters: 85°F maximum. Inlet pressure 40-80 PSI. Incoming TDS 2000 ppm maximum, if higher, con-sult IWP. Iron.5 ppm maximum. Hydrogen sulfide must be removed. Silica < 75 ppm. Turbidity should be removed. Hardness must be removed. pH 3-11. Operating Parameters: 200 PSI maximum. pH range 3-11. Flow rates are based on test parameters of 1500 ppm Nacl solution, 77°F water temperature. Typical membrane salt rejection is 95-98%. Actual flow rates and rejection vary depending on the pre-treatment used, water conditions, feed water tempera-ture, applied pressure and membrane type.
| UPC | 749460855750 |
|---|
