WECO PDI-2045 Color Changing Deionizing (DI) Mixed Bed Resin Filtration Kit

SKU

PDI-2045

Rating:

100 % of 100

1 Review Add Your Review

Price: $139.23

Parts In stock

Quantity	Price
2+	Price: $125.31

No shipping discounts / Promotions for bulk purchases

Quantity - +

YOUR PRICE

$139.23

Mixture of hydrogen form cation resin and hydroxide form type 1 porous strong base anion resin.
Anion component infused with a permanent pH indicator dye that chat changes color from blue to amber as the resin exhausts.
Applications include TDS removal, solar panel cleaning, window washing, spot free rinsing, aquariums, steam irons, pilot testing mixed bed resins.
Total exchange capacity 0.43 meq/ml.
Particle size 16 to 50 US Mesh (297 - 1190 μm).
Color Amber & Blue.
For use with cartridge part# DI-2045-CLX (included).
Recommended for use downstream of reverse osmosis for maximum cartridge life.

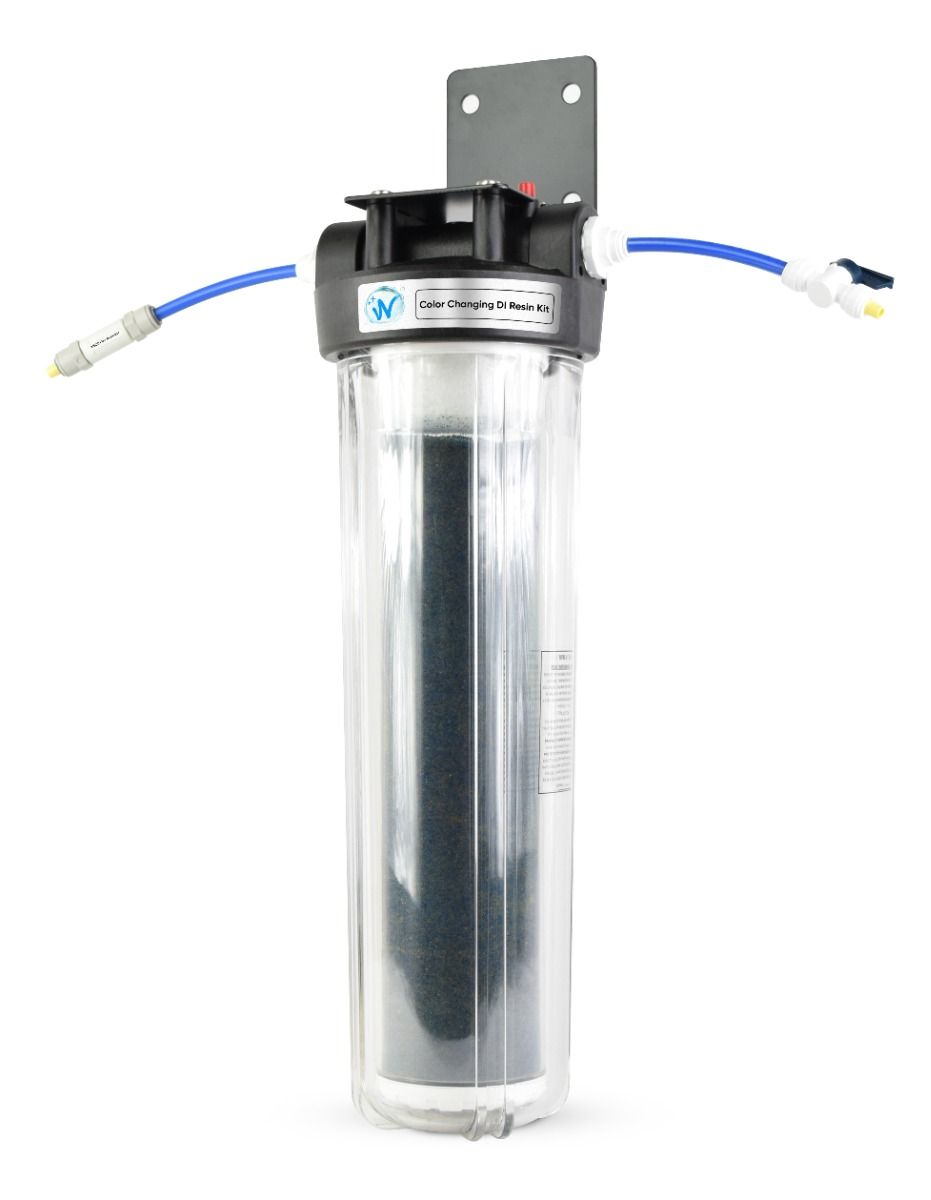

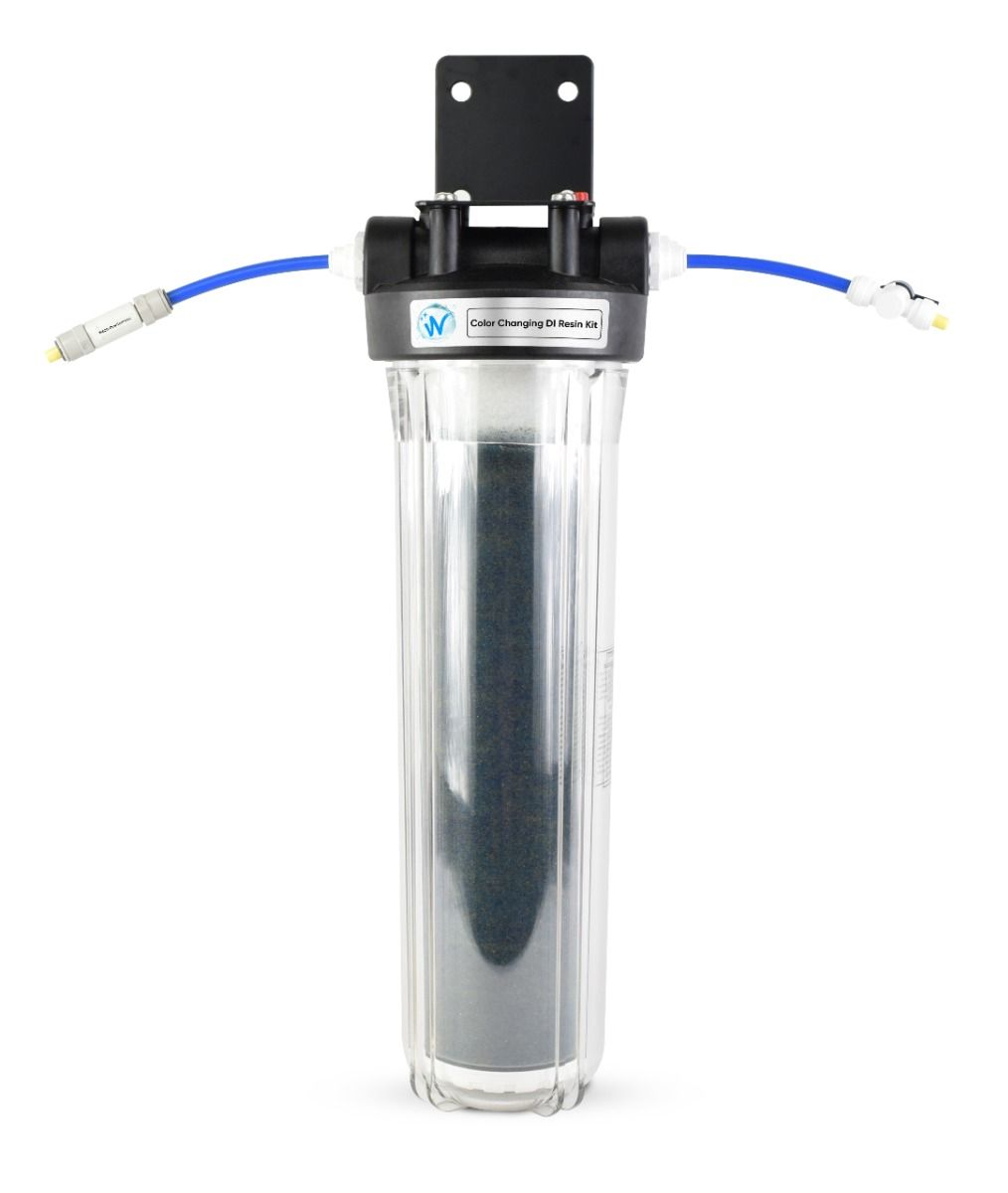

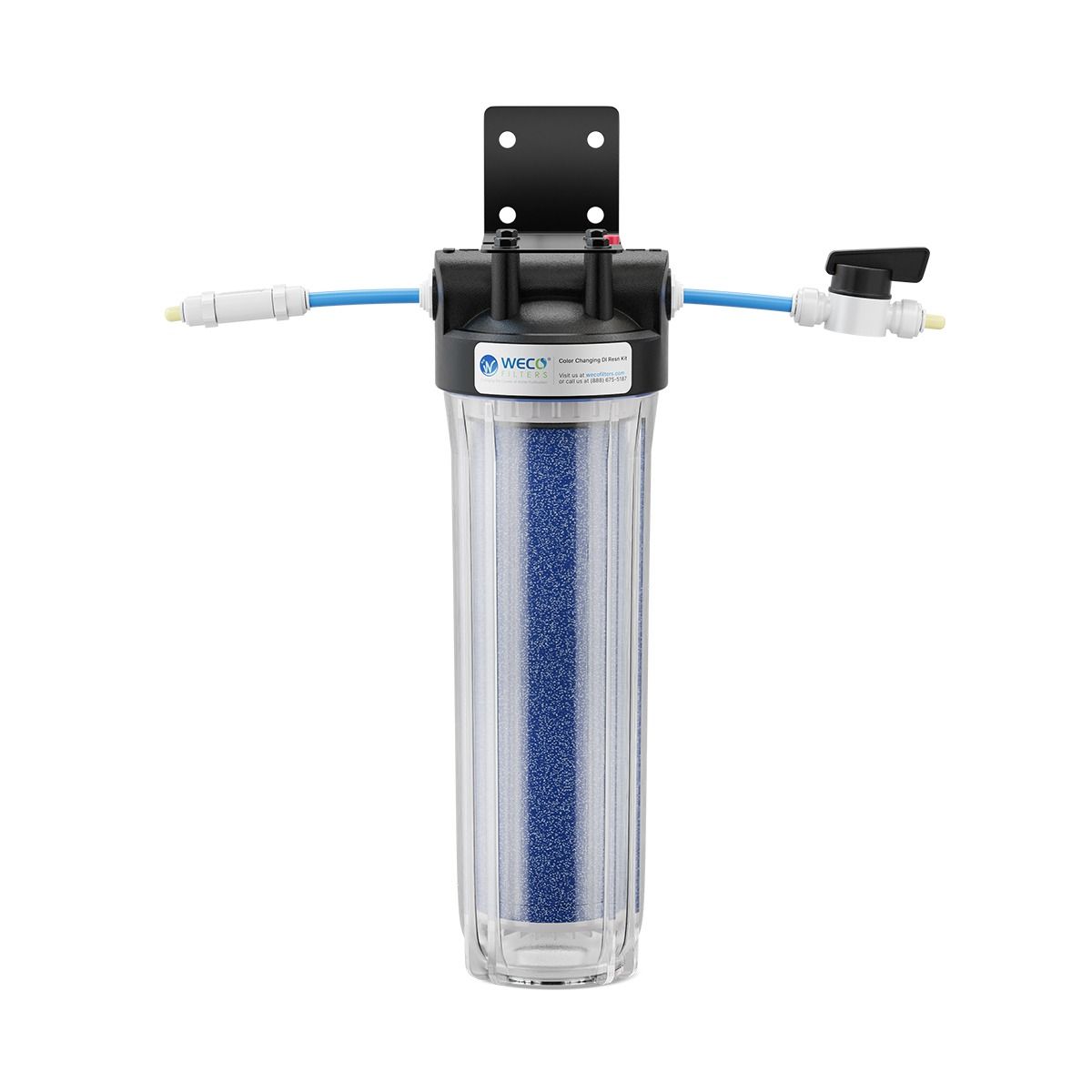

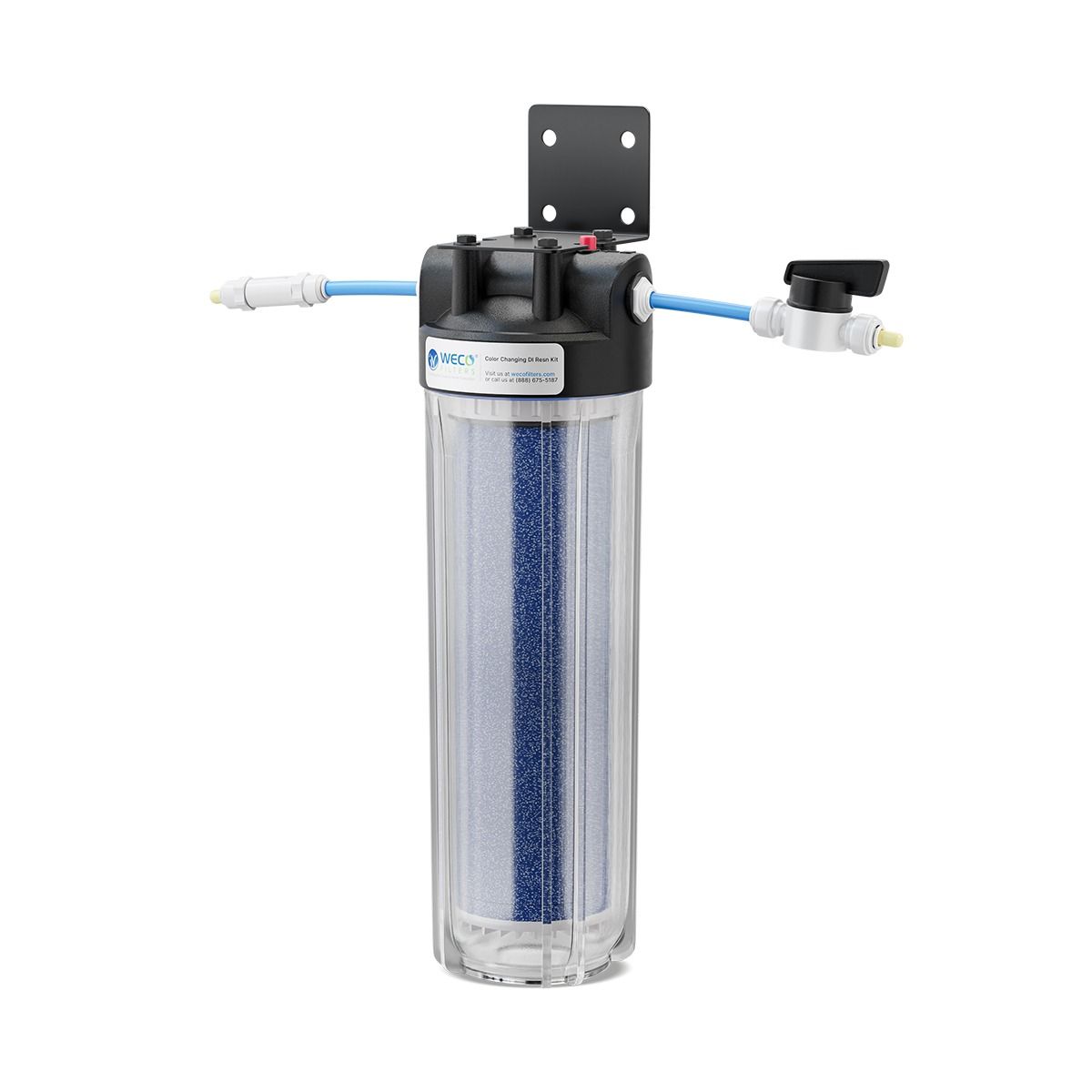

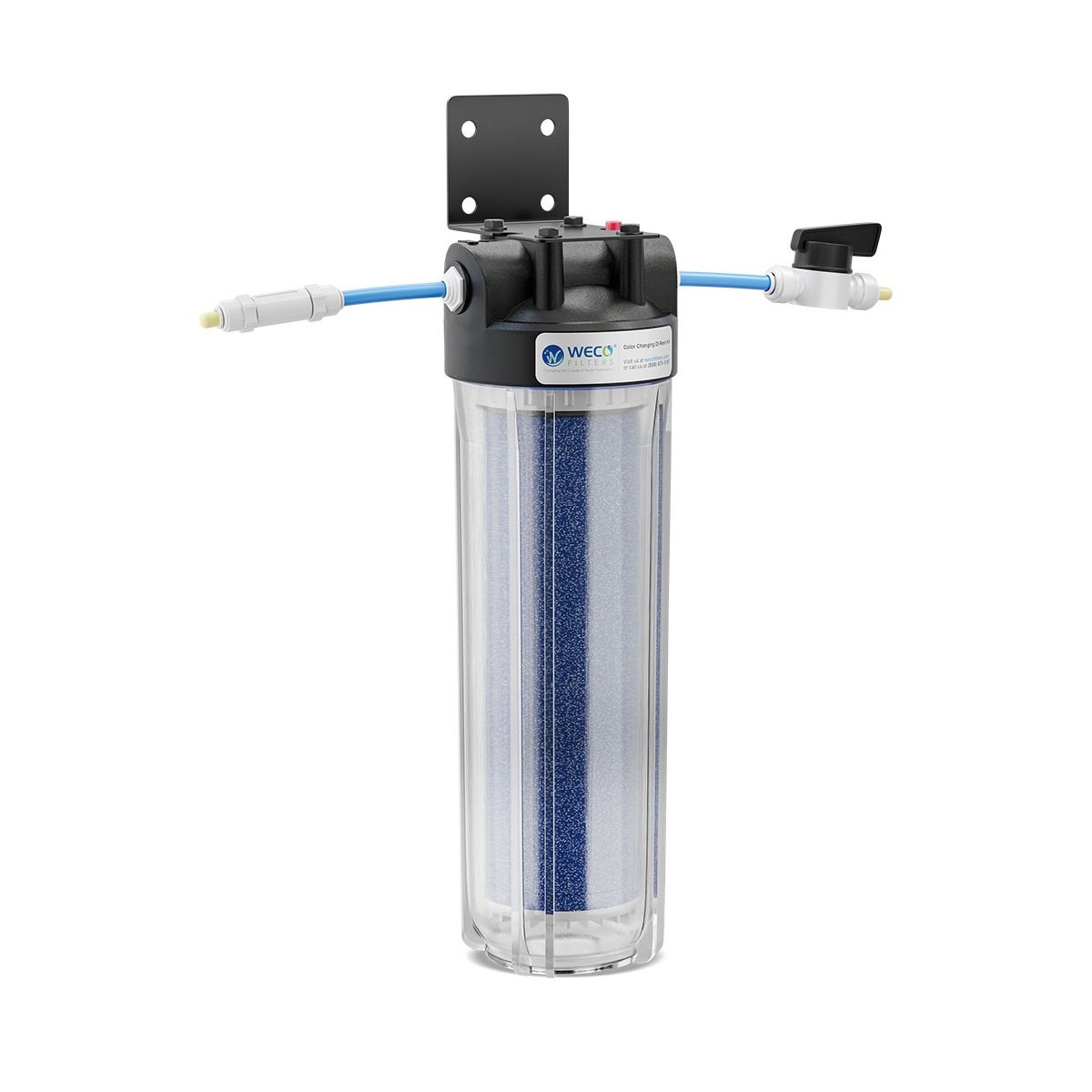

Clear 4.5 x 20" big blue type filter housing with bracket, flow restrictor and ball valve in 3/8" OD tubing.

Details

WECO Color Changing Deionizing Mixed Resin

Mixture of hydrogen form cation resin and hydroxide form type 1 porous strong base anion resin.
Anion component infused with a permanent pH indicator dye that chat changes color from blue to amber as the resin exhausts.
Applications include TDS removal, spot free rinse, window washing equipment, solar panel cleaning, aquariums, steam irons, pilot testing mixed bed resins.
Total exchange capacity 0.43 meq/ml.
Particle size 16 to 50 US Mesh (297 - 1190 μm).
Color Amber & Blue.

Specifications

Model	Dimensions	Maximum Flow	Capacity (grains as CaCO3)	Resistivity	Nominal Rating	Max. Temperature
Model	Dimensions	Maximum Flow	Capacity (grains as CaCO3)	Resistivity	Nominal Rating	Max. Temperature	DI-1025-CLX	2.5 x 10 in. (6.35 x 25.4 cm)	0.3 gpm (1.13 lpm)	~350	10 MΩ	25μ	100 ℉ (37.8 ℃)
DI-2025-CLX	2.5 x 20 in. (6.35 x 50.8 cm)	0.3 gpm (1.13 lpm)	~700	10 MΩ	25μ	100 ℉ (37.8 ℃)
DI-1045-CLX	4.5 x 10 in. (11.5 x 25.4 cm)	0.5 gpm (1.9 lpm)	~1050	10 MΩ	25μ	100 ℉ (37.8 ℃)
DI-2045-CLX	4.5 x 20 in. (11.5 x 44 cm)	0.5 gpm (1.9 lpm)	~2100	10 MΩ	25μ	100 ℉ (37.8 ℃)

Capacity Calculator

TDS as CaCO₃
(PPM)

CO₂ ppm as CO₂
(PPM)

Estimated Capacity (Gallons)

This calculation is derived from continuous water usage at the recommended service flow for the filter cartridge. Typically, CO₂ levels in city water range between 5 and 50 ppm.
