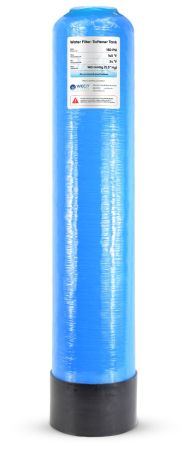

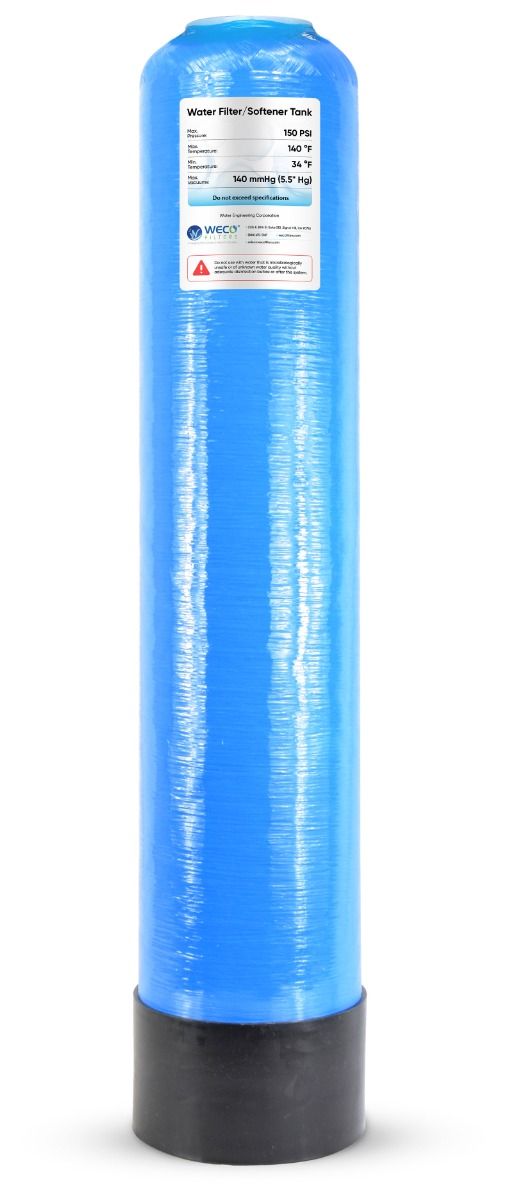

- Mineral tank for water softener/ water filter applications. Pressure vessel with polyurethane inner shell.
- Standard 2.5" top opening with #8 thread fits most standard filter/softener valves including backwash heads.
- Commonly used with softener resin, anion resin, carbon, iron reduction media, DI resin and various other water treatment media.
- Max. Pressure: 150 PSI (10.5 Bar).
- Max. Temperature: 140 °F (40 °C).
- Min. Temperature: 34 °F (1 °C).
- Max. Vacuums: 5.5"Hg (140 mmHg).
- Mineral tank for water softener/ water filter applications. Pressure vessel with polyurethane inner shell.
- Standard 2.5" top opening with #8 thread fits most standard filter/softener valves.
- Commonly used with softener resin, anion resin, carbon, iron reduction media, DI resin and various other water treatment media.
- Max. Pressure: 150 PSI (10.5 Bar).
- Max. Temperature: 140 °F (40 °C).
- Min. Temperature: 34 °F (1 °C).
- Max. Vacuums: 5.5"Hg (140 mmHg).
Black Color Mineral Tanks
Model | Size (Diameter x Height) Inches | Connection | Color | Total Volume (Gallons) | Media Capacity (cu ft) |
---|---|---|---|---|---|
MTBK0618 | 6 x 18 | 2.5" T | Black | 1.8 | 0.3 | MTBK0735 | 7 x 35 | 2.5" T | Black | 5.2 | 0.5 | MTBK0835 | 8 x 35 | 2.5" T | Black | 6.6 | 0.55 | MTBK0844 | 8 x 44 | 2.5" T | Black | 8.7 | 0.75 | MTBK0917 | 9 x 17 | 2.5" T | Black | 3.7 | 0.35 | MTBK0935 | 9 x 35 | 2.5" T | Black | 8.3 | 0.8 | MTBK0948 | 9 x 48 | 2.5" T | Black | 12.7 | 1 | MTBK1017 | 10 x 17 | 2.5" T | Black | 4.4 | 0.5 | MTBK1035 | 10 x 35 | 2.5" T | Black | 10.2 | 0.75 | MTBK1054 | 10 x 54 | 2.5" T | Black | 16.4 | 1.5 | MTBK1248 | 12 x 48 | 2.5" T | Black | 21 | 1.6 | MTBK1252 | 12 x 52 | 2.5" T | Black | 22.2 | 1.75 | MTBK1265 | 12 x 65 | 2.5" T | Black | 28 | 1.85 | MTBK1465 | 14 x 65 | 2.5" T | Black | 40.6 | 3 | MTBK1665 | 16 x 65 | 2.5" T | Black | 49 | 4 |
Blue Color Mineral Tanks
Model | Size (Diameter x Height) Inches | Connection | Color | Total Volume (Gallons) | Media Capacity (cu ft) |
---|---|---|---|---|---|
MTBU0618 | 6 x 18 | 2.5" T | Blue | 1.8 | 0.3 |
MTBU0713 | 7 x 13 | 2.5" T | Blue | 1.9 | 0.15 | MTBU0735 | 7 x 35 | 2.5" T | Blue | 5.2 | 0.5 | MTBU0744 | 7 x 44 | 2.5" T | Blue | 5.2 | 0.6 | MTBU0817 | 8 x 17 | 2.5" T | Blue | 2.9 | 0.33 | MTBU0835 | 8 x 35 | 2.5" T | Blue | 6.6 | 0.55 | MTBU0844 | 8 x 44 | 2.5" T | Blue | 8.7 | 0.75 | MTBU0935 | 9 x 35 | 2.5" T | Blue | 8.3 | 0.8 | MTBU0948 | 9 x 48 | 2.5" T | Blue | 12.7 | 1 | MTBU1017 | 10 x 17 | 2.5" T | Blue | 4.4 | 0.5 | MTBU1035 | 10 x 35 | 2.5" T | Blue | 10.2 | 0.75 | MTBU1044 | 10 x 44 | 2.5" T | Blue | 13.1 | 1 | MTBU1054 | 10 x 54 | 2.5" T | Blue | 16.4 | 1.5 | MTBU1248 | 12 x 48 | 2.5" T | Blue | 21 | 1.6 | MTBU1252 | 12 x 52 | 2.5" T | Blue | 22.2 | 1.75 | MTBU1265 | 12 x 65 | 2.5" T | Blue | 28 | 1.85 | MTBU1354 | 13 x 54 | 2.5" T | Blue | 27.5 | 2 | MTBU1465 | 14 x 65 | 2.5" T | Blue | 40.6 | 3 | MTBU1665 | 16 x 65 | 2.5" T | Blue | 49 | 4 |
Natural Color Mineral Tanks with Dome Hole
Model | Size (Diameter x Height) Inches | Connection | Color | Total Volume (Gallons) | Media Capacity (cu ft) | MTNDH1054 | 10 x 54 | 2.5" T | Natural | 16.4 | 1.5 |
---|---|---|---|---|---|
MTNDH1354 | 13 x 54 | 2.5" T | Natural | 27.5 | 2 |
