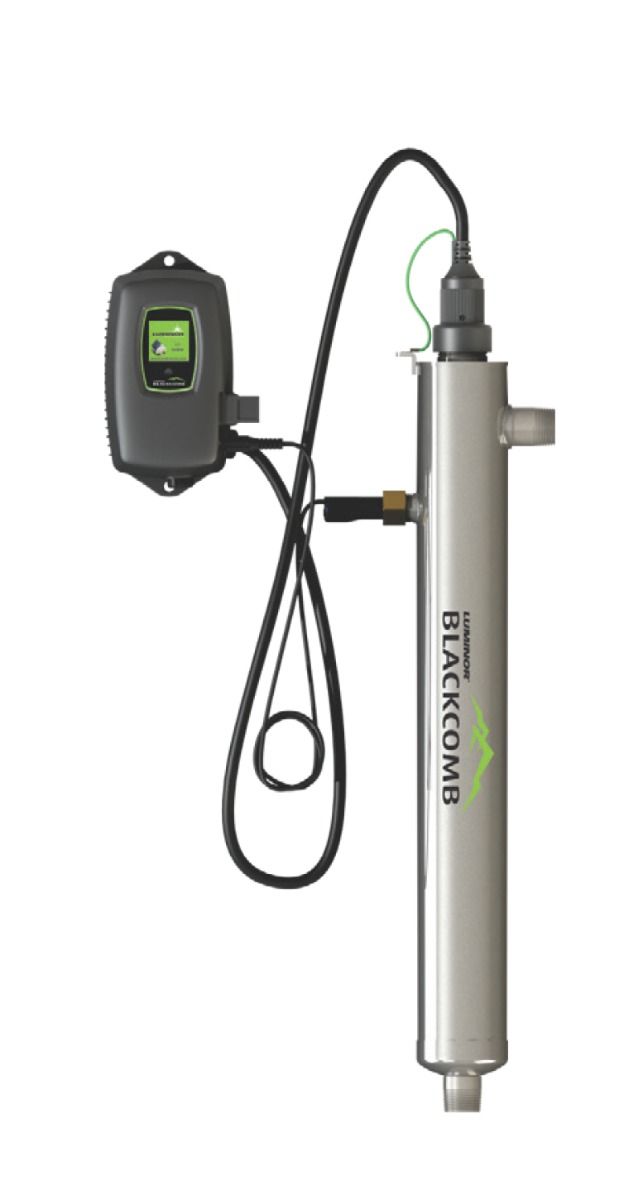

LUMINOR BLACKCOMB HO 7.9 GPM 1" MPT NSF Class A Validated UV Water Filtration System

SKU

LBH6-251A

Be the first to review this product

Parts In stock

NSF Class A Flow Rate (40 mJ/cm² @ 70%UV Transmittance) 7.9 gpm.
True 254nm Teflon® based UV sensor continuously measures and displays UV output (as a %).
Colour screen controller with Lightlock™ for protected lamp replacement, includes QR codes, full diagnostics & warnings.
Axial flow, stainless steel polished reactors, designed & manufactured to ASME pressure vessel standards (316L on LBH6 unit).
User friendly bayonet style lamp connector (quick ¼ turn removal with no extra tools needed).
Reliable, industry proven, proprietary low pressure coated UV lamps with ceramic bases for durability and long life (10,000 hours on LBH6 unit).
Constant current electronic controller in a splash proof case, fully potted ballast virtually eliminates common water damage issue.

Details

Description:

If you are looking for an independently validated UV system for PRIMARY disinfection of a bacteriologically contaminated water source, LUMINOR’s “NSF 55 CLASS A” validated systems is your solution.

NSF Class A Flow Rate (40 mJ/cm² @ 70%UV Transmittance) of 7.9 gpm.

SAFE

True 254nm Teflon® based UV sensor continuously measures and displays UV output (as a %)
Axial flow, stainless steel polished reactors, designed & manufactured to ASME pressure vessel standards (316L on LBH6 unit).
UV imparts no change in taste, odor, pH or conductivity.
No trihalomethanes (THM's) formation.

SIMPLE

User friendly bayonet style lamp connector (quick ¼ turn removal with no extra tools needed)
Maintenance involves annual lamp replacement (provided water quality parameters are met) and quartz sleeve cleaning when needed .
Automatic and user friendly operation.

EFFICIENT

Reliable, industry proven, proprietary low pressure coated UV lamps with ceramic bases for durability and long life (10,000 hours on LBH6 unit).
Microorganisms are inactivated within seconds; eliminates the need for long retention times or retention tanks.

STATE-OF-ART

Colour screen controller with Lightlock™ for protected lamp replacement, includes QR codes, full diagnostics & warnings
Lower capital investment when compared to chlorine or ozone systems.

E. Coli

Giardia

Viruses

Specifications

Part Number	Flow Rate (40mJ/cm2 @ 70% UVT) (LPM)	Rated Life (hrs)	Lamp Watts	Voltage at 50/60HZ	UV Monitor	Solenoid Output	Port size I/O	Water Chamber	Reactor Dimensions
LBH6-251A	7.9 GPM	10,000	67 W	90-265V	YES	YES	1" MNPT	Stainless A316L, A249 Pressure Rated	3.5 x 26.9”

Maximum Concentration Levels
Iron	< 0.3 ppm (0.3 mg/L)
Hardness	< 7 gpg (120 mg/L)
Turbidity	< 1 NTU
Manganese	< 0.05 PPM (0.05 mg/L)
Tannins	< 0.1 ppm (0.1 mg/L)
UV Transmittance	> 75%

Effectively treating water with higher concentration levels than listed above can be accomplished with WECO reverse osmosis, katalox light and/or cation softening upstream of UV. Chat online with us to discuss options.

Function of a UV Disinfection Reactor

Note: Your product may look different from the illustration

Parts & Accessories
Part Number	Lamp	Quartz Sleeve	UV Sensor	Optional Accessories Specific to your UV System
LBH6-401A	RL-600HO	RQ-600	RSHO-B3.5V	-	-	MOD-SOL (Solenoid Module)	MOD-RAM (Alarm Module)	MOD-420 (4-20mA Module)
