WECO IMPT-RO Commercial Reverse Osmosis Water Purification System - Made in U.S.A.
- Reverse osmosis drinking water purification system for light commercial applications.
- Thin Film Composite reverse osmosis membrans greatly reduces water contaminants like nitrate, TDS, fluoride, lead, sodium, cadmium, arsenic and mercury.
- Powder coated steel frame with pressure gauges.
- Fixed waste/recycle flow controls.
- High pressure nylon tubing.
- Feed water pressure switch .
- Tank pressure switch.
- Rotary vane pump.
- Feed water inlet solenoid valve.
- Heavy duty motor.
- Attractive upscale design.
- Digital product flow meter.
- 120v/60hz standard (<11 amps).
- Dual TDS Monitor.
- High capacity pre-filtration.

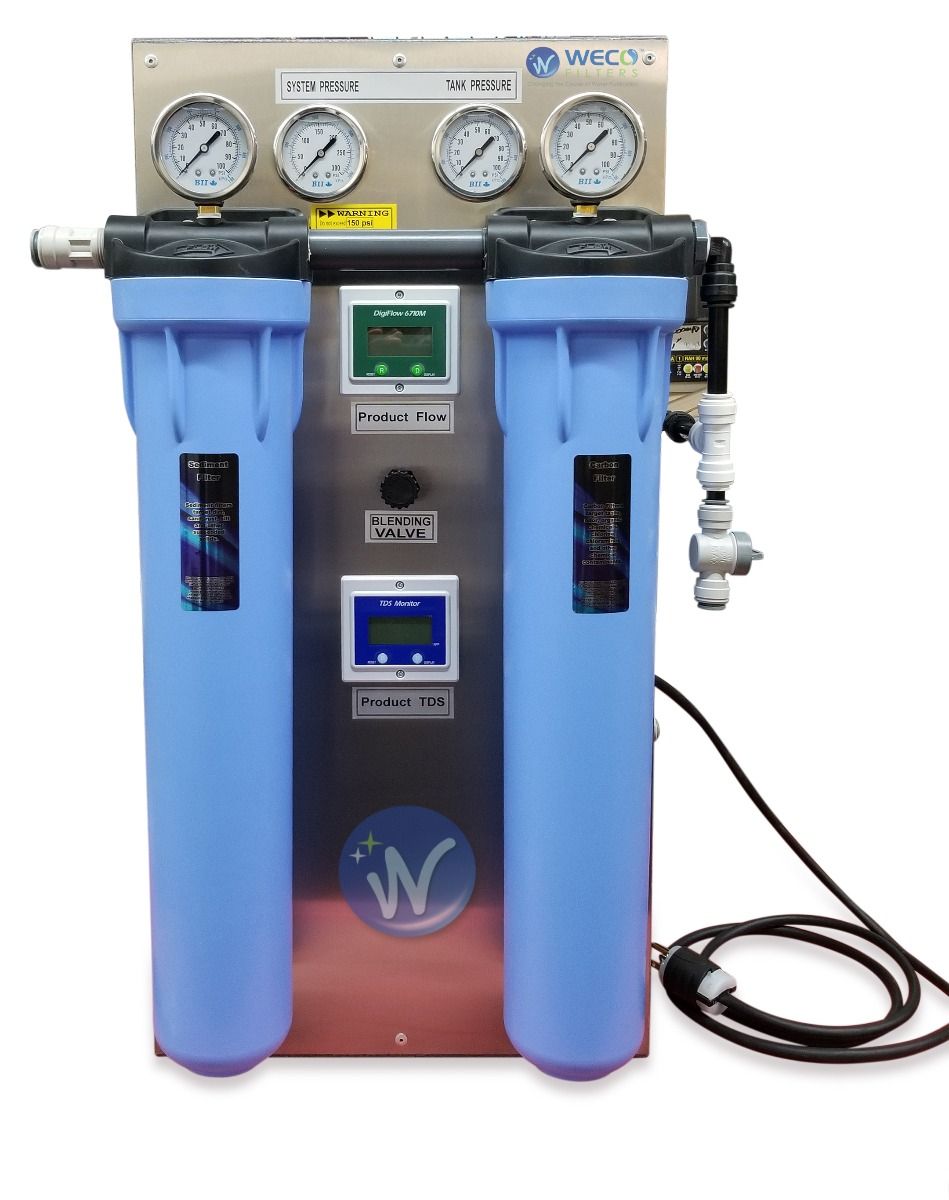

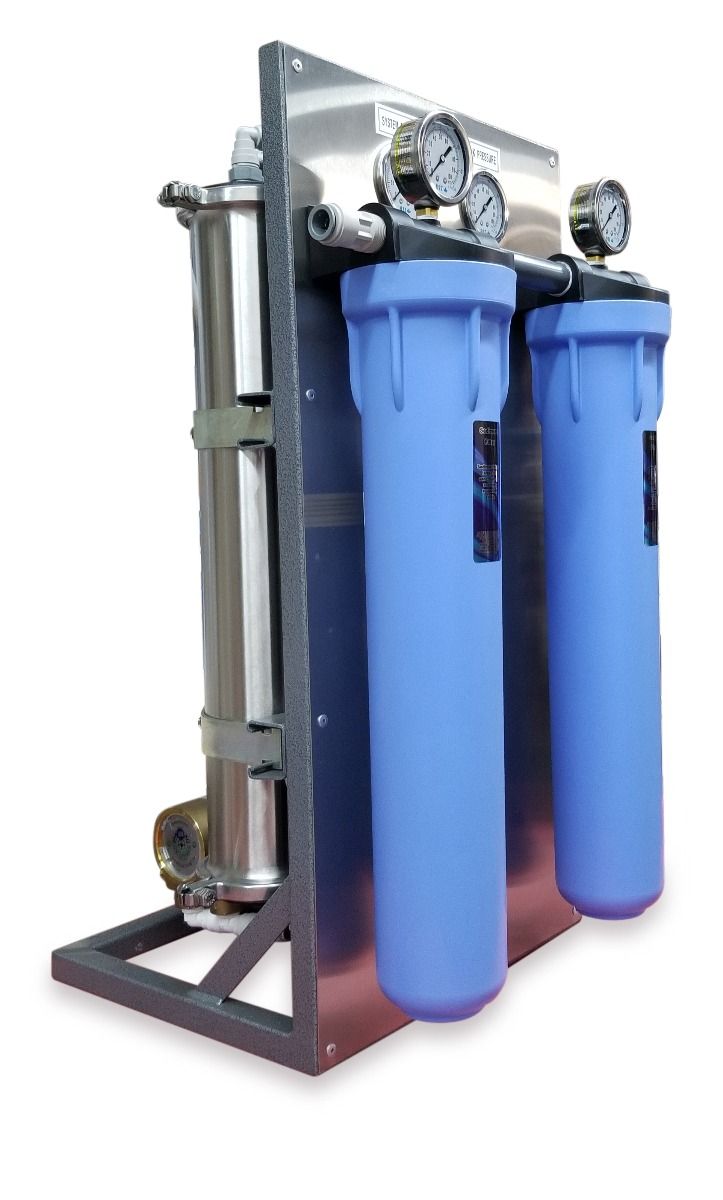

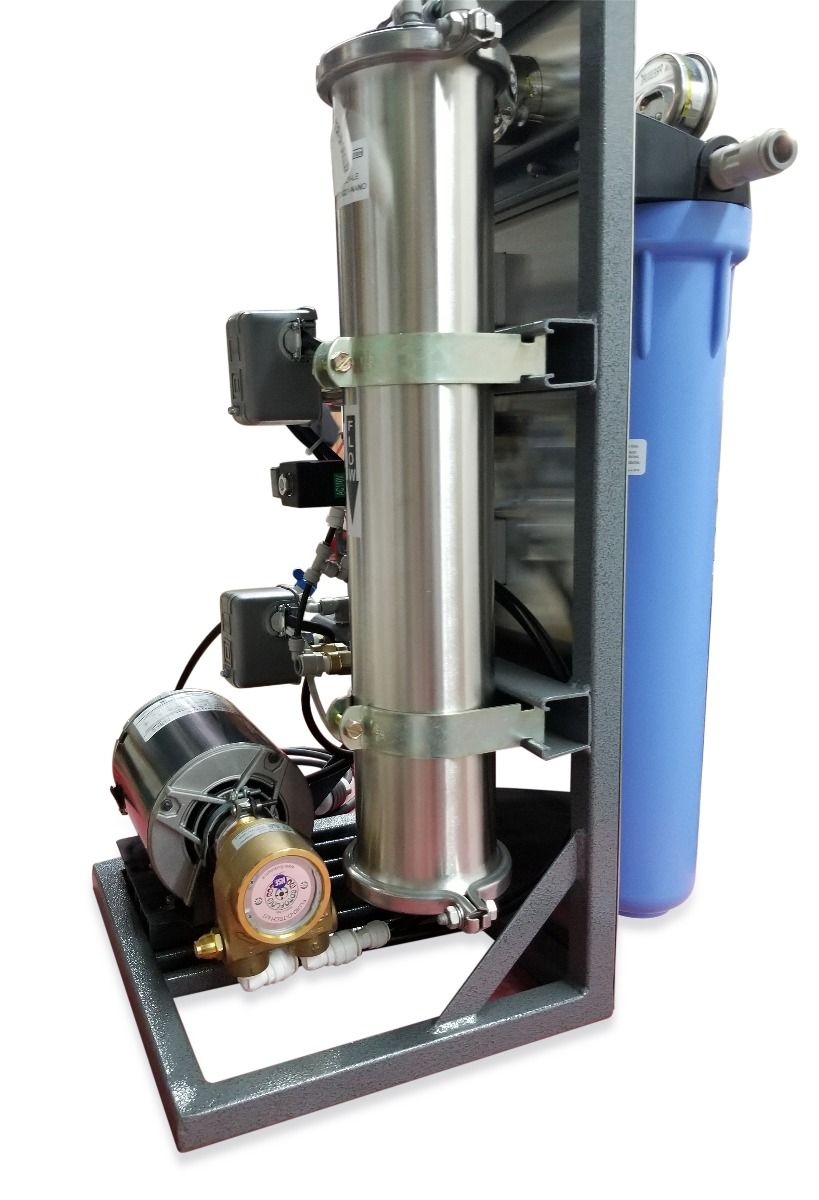

WECO IMPT-RO Commercial Reverse Osmosis Water Purification System
Simple and compact, these high output commercial RO’s are available in multiple configurations. Featuring USA made 5μ sediment filters, ultra high capacity (≈45,000 gal) carbon blocks, high rejection USA made “XL” membranes, Original John Guest fittings, USA made Aquatec Pumps and switches, and other quality brand names. Only the best components are used to manufacture the WECO RO systems! Assembled and performance tested in our Long Beach California assembly facility. Available either in high rejection (HP) or low energy (LE) designs. For use with any of our pressurized RO storage tanks, or add the atmospheric tank conversion kit to use with any size atmospheric tank. Common models listed, customized builds available. Available with Pentek Slimline or 3G housings. White and clear Atlas Filtri available upon request. Bulkhead fittings for simple installation. Unique floor mount bracket is made in the USA!
Standard Features
Membrane Elements
Membrane Housings
Filter Cartridge
Filter Housings
Flow Control
Brackets and Clips
* Feed Water Parameters: 85°F maximum. Inlet pressure 40-80 PSI. Incoming TDS 2000 ppm maximum, if higher, consult WECO. Iron .5 ppm maxi-mum. Hydrogen sulfide must be removed. Silica < 50 ppm. Turbidity should be removed. Hardness must be < 7 GPG. pH 3-11. Operating Parameters: 200 PSI maximum. pH range 3-11. Flow rates are based on test parameters of 1500 ppm NaCl solution, 77°F water temperature. Typical membrane salt rejection is 95-98%. Actual flow rates and rejection vary depending on the pre-treatment used, water conditions, feed water temperature, applied pressure and membrane type. Feed water analysis report available.
Specifications
| Models | System Capacity | Membrane Elements | Standard Recovery | Nominal TDS Rejection | Dimensions in | Shipping Weight lbs | ||
|---|---|---|---|---|---|---|---|---|
| GPD | LPD | Size | Quantity | |||||
| IMPT-RO-4014-LE | 475+ | 1,893 | 4014 | 1 | 50% | 95% | 30H x 16L x 14W | 72 | IMPT-RO-4014-HP | 450+ | 1,703 | 4014 | 1 | 50% | 98% | 30H x 16L x 14W | 72 | IMPT-RO-4021-LE | 1,000+ | 3,785 | 4021 | 1 | 50% | 95% | 30H x 16L x 14W | 74 | IMPT-RO-4021-HP | 800+ | 3,028 | 4021 | 1 | 50% | 98% | 30H x 16L x 14W | 74 |
