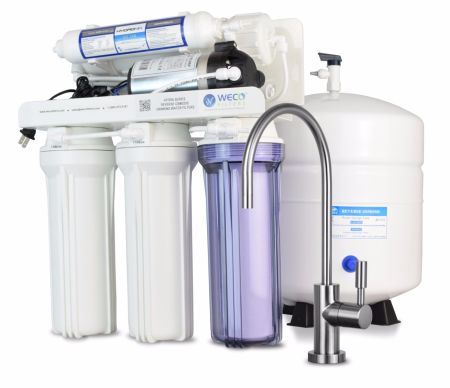

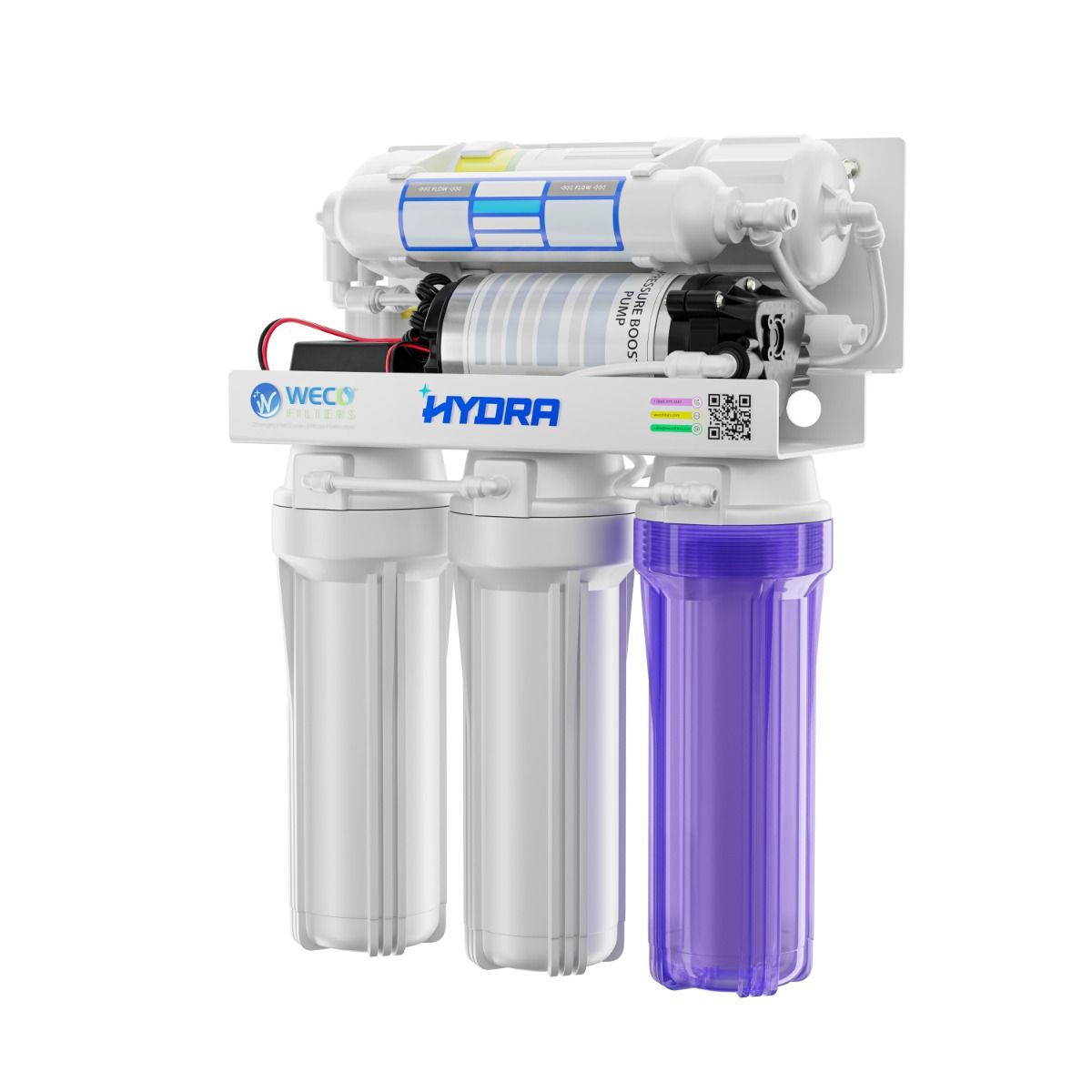

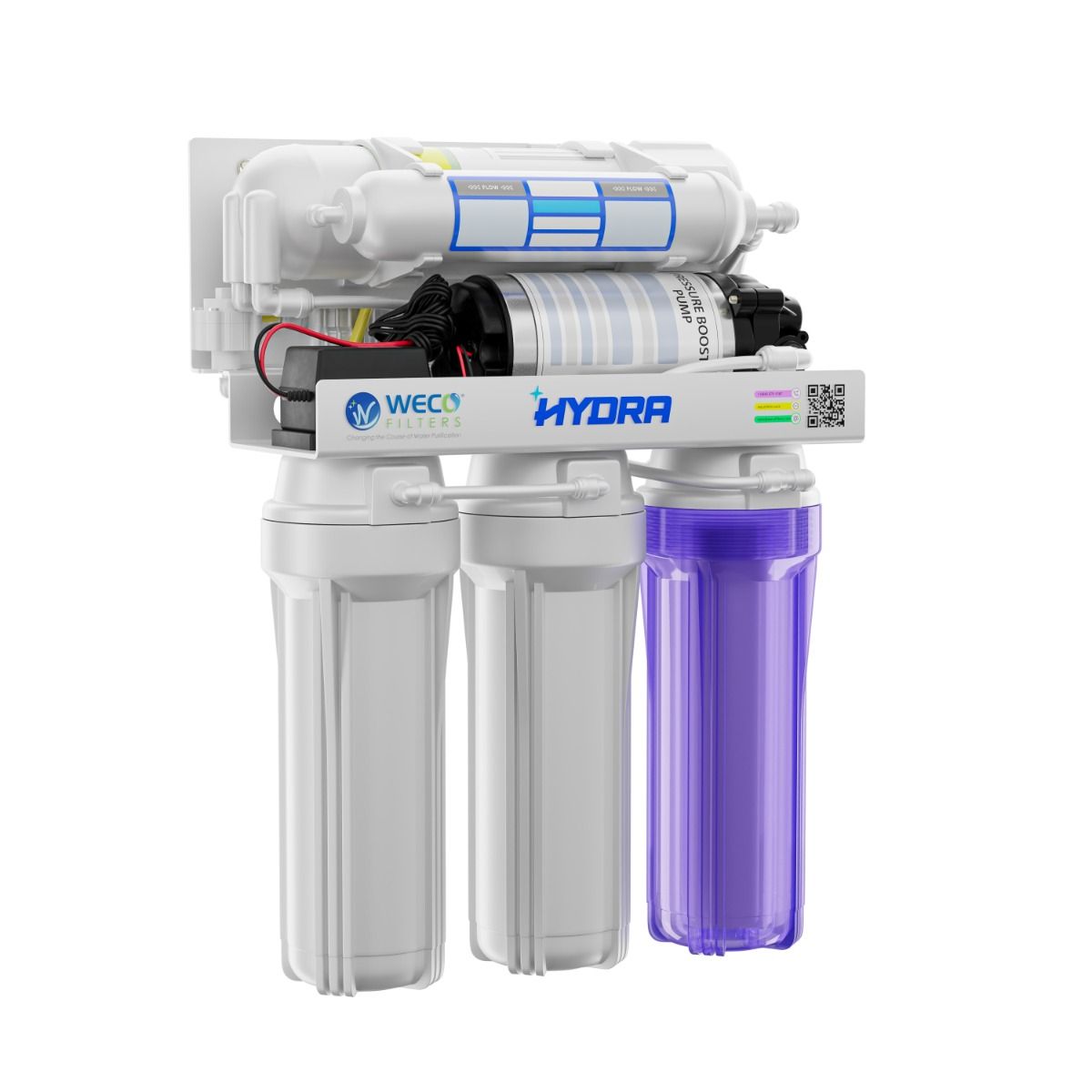

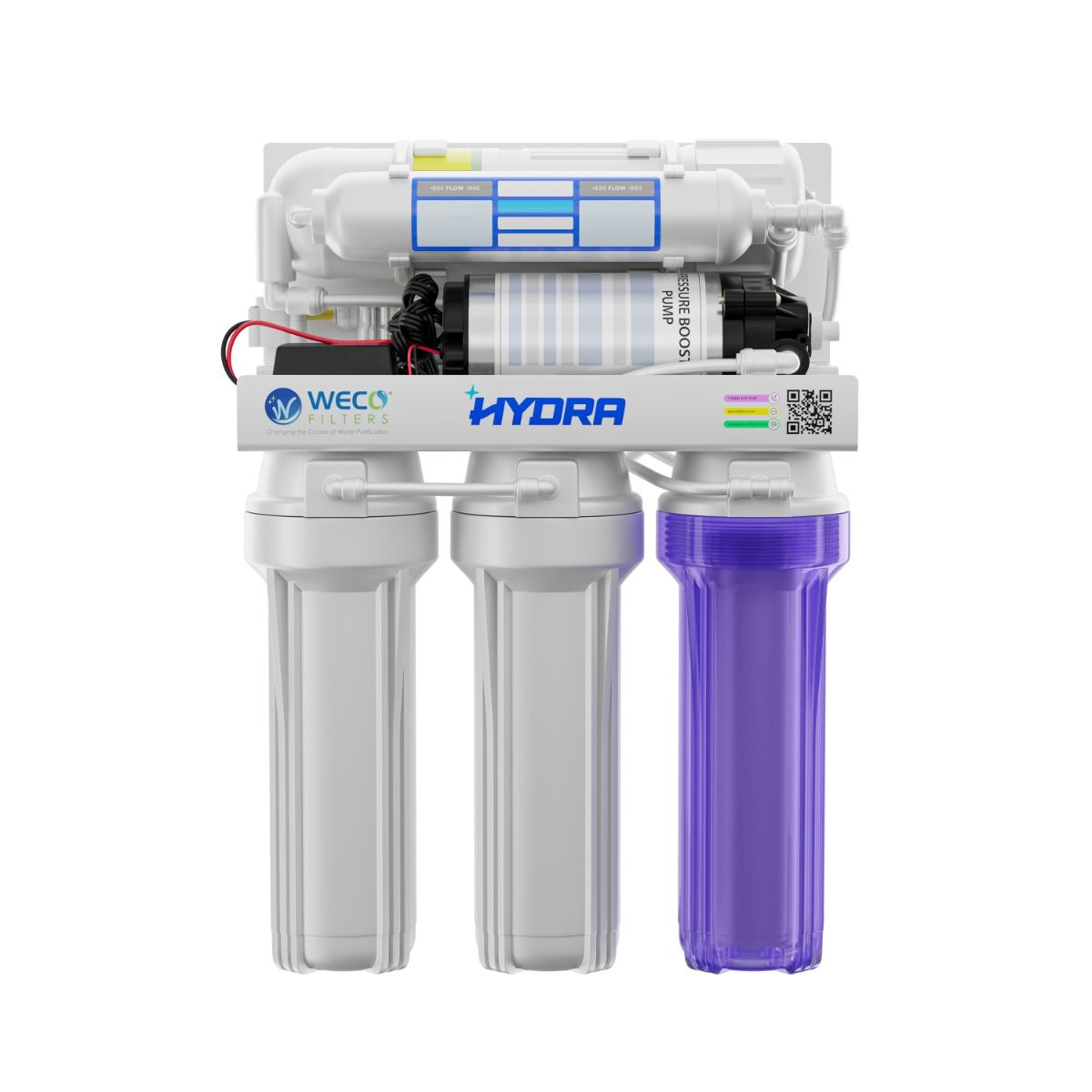

WECO HYDRA-75PMP Reverse Osmosis Drinking Water Filtration System with Booster Pump
- Achieve higher TDS rejection (maximum contaminant reduction) with boosted water pressure.
- 5-micron polypropylene pre-filter removes sediment, rust and other microscopic debris.
- 5-micron solid activated carbon block cartridge and 0.5 micron carbon block filter remove chlorine, chloramine, bad tastes and odors, pesticides and carcinogenic impurities.
- Standard TFC reverse osmosis membrane (75 gallons per day) removes up to 99% of water contaminants like lead, nitrate, fluoride and mercury, even in high TDS water.
- Electric pressure booster pump (110 VAC down to 24V) increases faucet and/or ice maker water flow while helping the reverse osmosis membrane reject more contaminants.
- NSF-certified lead-free faucet.
- Granular activated in-line post-filter polishes the water to crystal clear perfection.

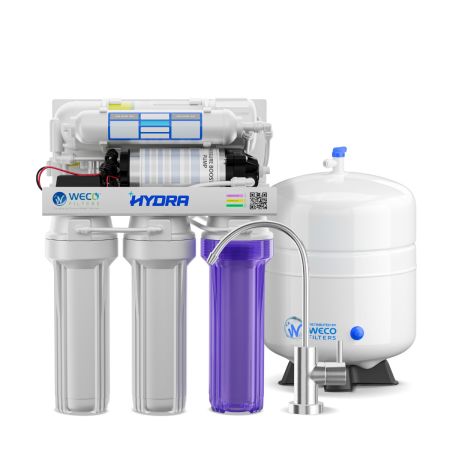

- Easy to install kit includes water storage tank and pure water dispensing euro style designer faucet.
Description
The WECO Hydra reverse osmosis filtration system is the ideal water purification filter for home, office, health clubs, juice bars, coffee shops or anywhere safe, fresh-tasting water is needed. The WECO reverse osmosis system uses separate individual stages of water filtration to create pure, refreshing drinking water.
The process starts by pre-filtering the water through a 5 micron sediment filter. Prefiltration removes tiny particles that can get into the water supply. These include iron oxide (rust), silt, sand grains and insect parts. This filtering stage protects your family from drinking sediment and prevents the filtration system from clogging. The sediment pre-filter is contained in a clear, see-through filter housing, making it easy for you to see when the filter needs to be replaced. No need to guess! At the 2nd stage, a 5 micron activated carbon block filter cartridge filters chlorine taste and odor.
Next, water flows through a 0.5-micron activated carbon block cartridge. This compressed activated carbon block filter removes taste and odor-causing chemicals like chlorine, chloramine and rotten-egg (hydrogen sulfide) and musty odors. The chlorine disinfection process is known to create cancer-causing byproducts in the water. These carcinogens, called THMs, are removed by the activated carbon block filter. The carbon cartridge also removes organic contaminants like herbicides, insecticides and industrial chemicals that seep into groundwater. But that’s not all.
The next filtration stage involves the reverse osmosis (RO) process. Tap water is “squeezed” through a special Thin Film Composite (TFC) semi-permeable membrane. The RO process removes lead, salts, nitrate, fluoride, radon and benzene. For the final stage of purification the water flows through granular activated carbon (GAC) in-line post filter. This acts as a polishing filter, removing any traces of tastes, odors or gasses, for crystal clear, sparkling drinking water.
Applications
High Contaminant Rejection
- Added electric booster pump increases the RO production rate, boosts the pressure tank storage volume, rejects more contaminants and increases faucet flow rate even if the reverse osmosis membrane pressure rating is met by the water supply.
Pre-Assembled and Labeled
- The system is pre-assembled and ready for quick installation under the sink.
- All fittings are quick connect; simply push in the tubing for a secure, leak-free, and tight connection.
- Components are clearly labeled.
Crystal Clear, Purified Drinking Water
- Multiple stages of filtration remove any traces of tastes, odors, or gasses, providing crystal clear, fresh-tasting drinking water.
Filter Cartridges
[5-micron] Hydronix SDC-25-1005 polypropylene pre-filter removes sediment, rust and other microscopic debris
[5-micron] Hydronix CB-25-1005 solid activated carbon block cartridge remove chlorine, Chloramine, bad tastes and odors, pesticides and carcinogenic impurities
[5-micron] Hydronix SMCB-2510 carbon block filter remove chlorine, chloramine, bad tastes and odors, pesticides and carcinogenic impurities
Hydronix TFC reverse osmosis membrane removes up to 99% of water contaminants like lead, nitrate, fluoride and mercury, even in high TDS water
[5-micron] Hydronix SMCB-2510 carbon block filter remove chlorine, chloramine, bad tastes and odors, pesticides and carcinogenic impurities

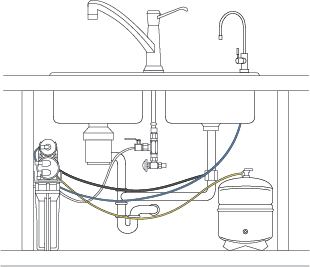

Installation
Connection 1: Connect cold water line to RO feed port using supplied adapter.
Connection 2: Install RO faucet (either by drilling or using triple faucet).
Connection 3: Install drain saddle into drain pipe.
Connection 4: Install storage tank for purified water.
Use the color coded tubing to make the following connections:
- The WHITE tubing connects the water supply adapter to the inlet side.
- The BLUE tubing connects the faucet to the outlet side.
- The BLACK tubing connects to the drain clamps.
- The YELLOW tubing connects the storage tank to the inlet side of the postcarbon.
The WECO Hydra reverse osmosis filtration system is the ideal water purification filter for well/city water homes, offices, health clubs, juice bars, coffee shops or anywhere safe, fresh-tasting water is needed. The WECO reverse osmosis system uses separate individual stages of water filtration to create pure, refreshing drinking water
Notably, the inclusion of the standard membrane housing enables the RO system to function with any residential reverse osmosis membrane available in the market, following industry standards. It's essential to keep in mind that altering the production capacity will also necessitate adjusting the flow restrictor value accordingly.
Total Dissolved Solids (TDS) Reduction Chart
Available Pressurized Storage Tanks
Tank Specifications
| Models | Total Capacity | ≈ Usable Capacity | Diameter (in) | Height (in) | Connector Size | Color | ||
|---|---|---|---|---|---|---|---|---|
| Gal | Liter | Gal | Liter | |||||
ROT-1-W |
1 | 3.8 | 0.6 | 2.3 | 6 | 9 | ¼" MNPT | White |
ROT-2-W |
2 | 7.6 | 1.2 | 4.5 | 6 | 12 | ¼" MNPT | White |
ROT-3-W |
3 | 11.4 | 1.8 | 6.8 | 9 | 16 | ¼" MNPT | White |
ROT-4-W |
4.5 | 17 | 2.8 | 10.6 | 11 | 16 | ¼" MNPT | White |
ROT-6-W |
6 | 22.7 | 3.6 | 13.6 | 12 | 17 | ¼" MNPT | White |
ROT-10-W |
10 | 37.9 | 6 | 22.7 | 12 | 22 | ¼" MNPT | White |
ROT-14-W |
14 | 52.9 | 8.4 | 31.7 | 16 | 25 | ¼" MNPT | White |
ROT-14-B34 |
14 | 52.9 | 8.4 | 31.7 | 16 | 25 | ¾ " MNPT | Blue |
ROT-20-B34 |
20 | 80 | 14 | 53 | 16 | 31 | ¾" MNPT | Blue |
Contaminants Reduced from Activated Carbon and Reverse Osmosis Combined Filtration
| Chlorine | Magnesium | Silver | Radioactivity | Nitrate | Boron | Protozoa |
|---|---|---|---|---|---|---|
| Chloramine | Potassium | Zinc | Chromium-6 | Fluoride | Arsenic (3+) | Ameobic |
| Color | Iron | Strontium | Chromium-3 | Phosphate | Arsenic (5+) | Cysts |
| Odor | Manganese | Cadmium | Lead | Chromate | Selenium | Turbidity |
| Sodium | Calcium | Nickel | Chloride | Cyanide | Barium | Asbestos |
| Aluminum | Copper | Mercury | Bicarbonate | Sulfate | Sediment | Bacteria and more… |
Specifications & Operating Limits
| Max. Filtered Water Flow (gpm) | 0.75 |
| Max. Hardness | 10 Grains @ 6.9 pH |
| Max. TDS (ppm) | 2000 |
| Automatic Shut-Off | Yes |
| Filter Life | 6 Months or 900 gallons for pre-filters 12 Months or 1500 gallons for post filter 24 Months for membrane |
| Feed Water pH Limits | 4-10 |
| Feed Water Pressure (psi) | 40 Min - 125 Max. |
| Feed Water Temperature | 40-100 °F |
| Fittings | 1/4" - Push to Connect |
| Plumbing Connections | 1/4" Inlet – 1/4" Outlet |
| Water Inlet Valve | 1/2" & 3/8" NPT ball valve adaptor |
| Capacity | |
|---|---|
| Filtered Water Output | 75 gal/day |
| Storage Tank Capacity (gals.) | 3.2* (*Theoretical tank capacity. When tested according to NSF/ANSI 58 at 50 PSIG inlet pressure, tank capacity is 2.3 gallons) |
| Pre/Post Filter Life | 900 Gallons |
| Appearance | |
|---|---|
| Color Appearance | White |
| Faucet Color | Brushed Nickel |
| Filter Housing | White |
| Installation | Undercounter Kit Included |
| Unit Color | White |
| System Mounting Orientation | Floor Standing or Wall Mount |
| Weights & Dimensions | |
|---|---|
| Overall Depth | 5.5 in |
| Overall Height | 17.0 in |
| Overall Width | 16.0 in |
| Tank Dimensions (H X W X D) | 16 x 11 x 11 (in.) |
| Approximate Shipping Weight | 23.0 lb |
| Net Weight | 21.0 lb |
| Accessories | |
|---|---|
| Icemaker Connection Kit | IM25EZ (Available at Additional Cost) |
| Installation Kit | Included |
| Replacement Filters | HYDRA-SET5-75 (Pre, Post & Membrane) |
| Replacement Membrane | TW-1812-75 |
| Warranty | |
|---|---|
| Parts Warranty | Limited 1-year |
| Power/Ratings | |
|---|---|
| - | - |
| Filter | |
|---|---|
| App Filter - Product Type | Filtration Reverse Osmosis |
| UPC | 810388030908 |
|---|
