- AXEON® HF1 Low Energy Membranes
- AXEON PVC Membrane Housings
- AXEON by Pentair® Single O-Ring Cartridge Housing
- AXEON Permeate and Concentrate Flow Meters
- AXEON 0 - 100 psi Glycerin-Filled Pre-Filter Pressure Gauge
- AXEON 0 - 300 psi Glycerin-Filled Pump Pressure Gauge
- Manual On and Off Control Switch
- Feed Low Pressure Switch
- AXEON GC - Series Feed Solenoid Valve
- AXEON 316 Stainless Steel Concentrate Valve
- Fluid -O- Tech™ Low Lead Brass Rotary Vane High Pressure Pump
- ODP High Efficiency Carbonator Motor
- John Guest® Push/Pull Fittings with Locking Safety Clips
- White Powder Coated Aluminum Frame

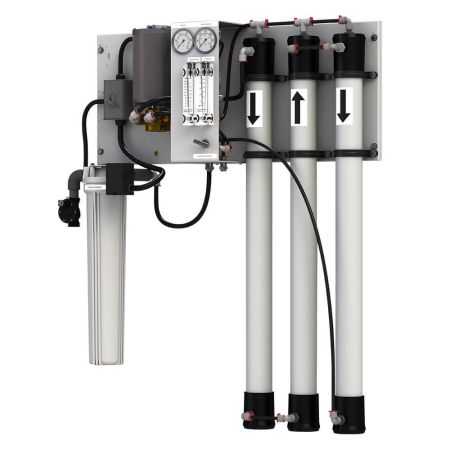

FLEXEON HT-2000 Commercial Wall Mount Reverse Osmosis System
FLEXEON HT - Series Commercial Wall Mount Reverse Osmosis Systems are designed for easy operation and service with a readily-accessible filter and membranes, and are available in five models ranging in production capacities from 250 to 2,000 gallons per day. The HT - Series models are equipped with our unique EZMount™ two - piece wall mounting system for easy installation. An optional mobile stand is also available to convert any of the HT - Series models into floor standing systems.
Standard Features
Membrane Elements
Membrane Housings
Filter Cartridge
Filter Housing
Instrumentation
Flow Control
Pumps and Motors
Fittings
Frame
Accessories are Available
* Additional options and upgrades available
Specifications
Models | System Capacity | Membrane Elements | Standard Recovery | Nominal TDS Rejection | Dimensions L x W x H in (cm) | Shipping Weight lbs (kg) | ||
---|---|---|---|---|---|---|---|---|
GPD | LPD | Size | Quantity | |||||
HT - 250 | 250 | 946 | 2521 | 1 | 33% | 98% | 10 x 38 x 38 (25.4 x 96.5 x 96.5) | 60 (27.2) |
HT - 500 | 500 | 1,893 | 2521 | 2 | 33% | 98% | 10 x 38 x 38 (25.4 x 96.5 x 96.5) | 65 (29.5) |
HT - 1000 | 1,000 | 3,785 | 2521 | 3 | 50% | 98% | 10 x 38 x 38 (25.4 x 96.5 x 96.5) | 70 (31.8) |
HT - 1500 | 1,500 | 5,678 | 2540 | 2 | 75% | 98% | 10 x 38 x 45 (25.4 x 96.5 x 114.3) | 95 (43.1) |
HT - 2000 | 2,000 | 7,571 | 2540 | 3 | 75% | 98% | 10 x 38 x 45 (25.4 x 96.5 x 114.3) | 135 (61.2) |
