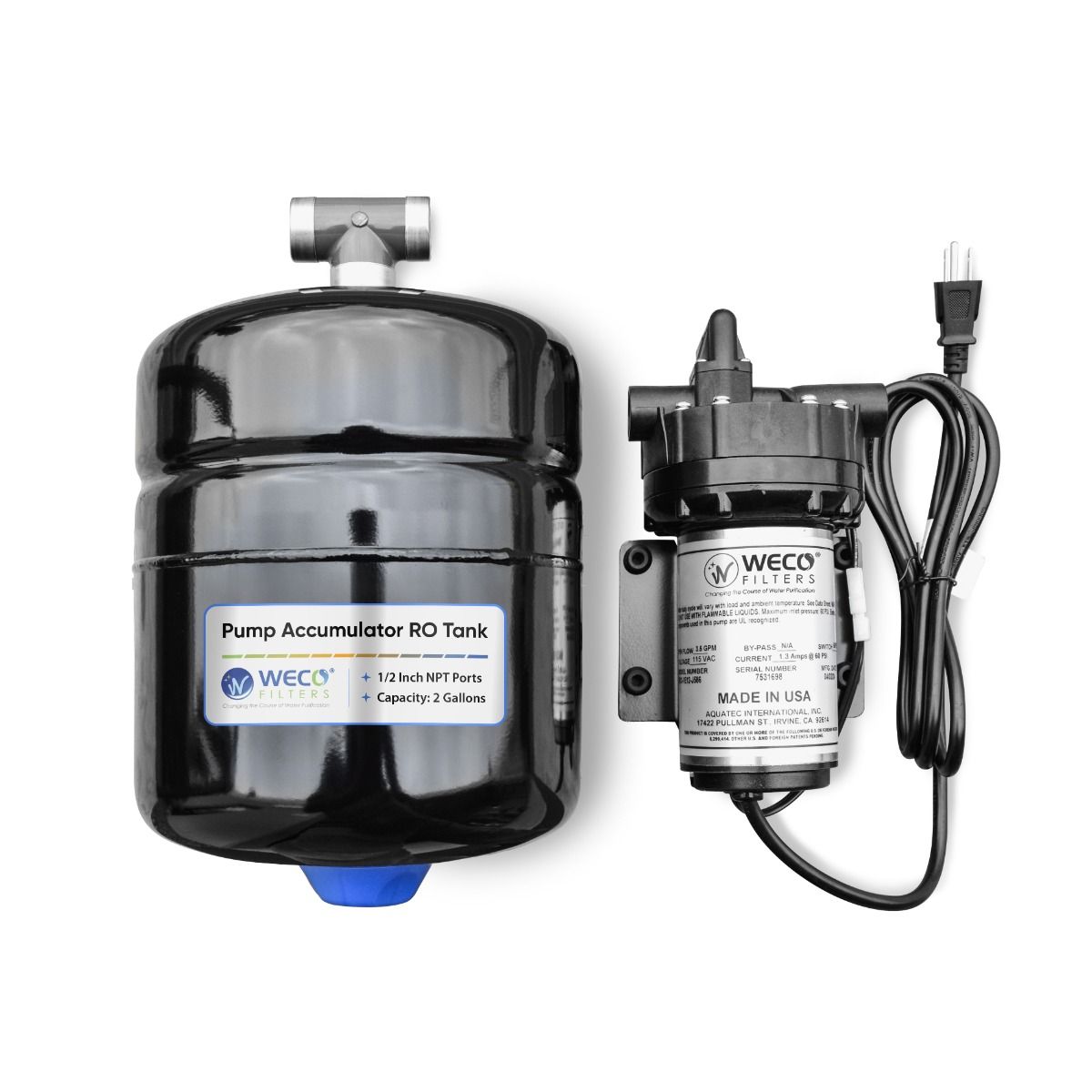

- Water pressure boosting pump unit to be installed after RO pressure tanks.
- Pump system will try to maintain ~60 PSI at refrigerator ice makers, water dispensers, pot fillers, regular faucets and other equipment connected downstream of the reverse osmosis unit.
- Can handle flow rates up to 3.5 gallons per minute.
- 3/8" Push Connect fittings included.
- US plug 115 VAC 1.3 Amps at 60 PSI. Pressure switch integrated.
Specifications
| Model | Max Flow Rate (gpm) |
Max Pressure (PSI) |
Pump Dimensions (in) |
Tank Dimensions (in) |
Connector Size |
Color |
|---|---|---|---|---|---|---|
| DP90 | 0.9 | 60 | 3.68x3.18x7.28 | 9x5x4.25 | 3/8” Quick Connect |
Black |

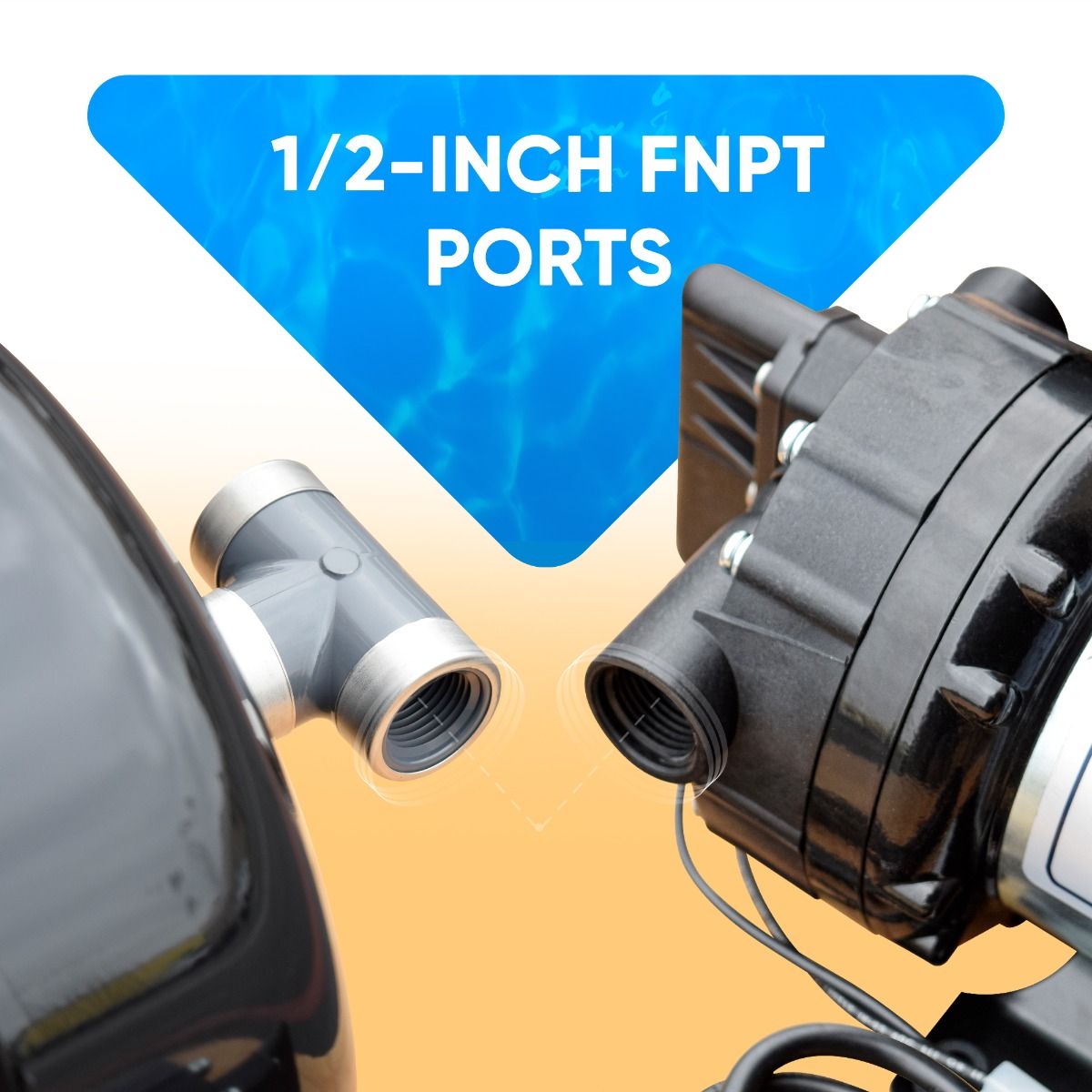

| DP350 | 3.5 | 60 | 3.68x3.18x7.28 | 8x8x12 | 1/2” Female NPT |
Black |
Description
This high-performance water pressure boosting pump unit is ideal for basement installations of reverse osmosis (RO) systems. Designed to be installed after RO pressure tanks, it delivers consistent water pressure to various points of use, including refrigerator ice makers, water dispensers, pot fillers, regular faucets, and other downstream equipment connected to the RO unit. The pump maintains approximately 60 PSI at all outlets, ensuring optimal performance of your RO system.
This unit operates on a standard US plug with power specifications of 115 VAC and 1.3 Amps at 60 PSI. Equipped with an integrated pressure switch, it automatically turns on and off as needed for seamless operation.
Professional Plumbing Support Recommended for Installation
Water pressure can cause leaks and damage the surrounding building or fixtures if not properly installed. User must check all fittings for tightness. WECO assumes no responsibility for water damage due to leaks.
Filtering Well Water?
Prior to placing an order, provide us with a comprehensive water quality analysis of your private well for a customized solution.
Alternatively, choose our basic well water test kit, and we will conduct the test on your behalf
| UPC | 670087223564 |
|---|
