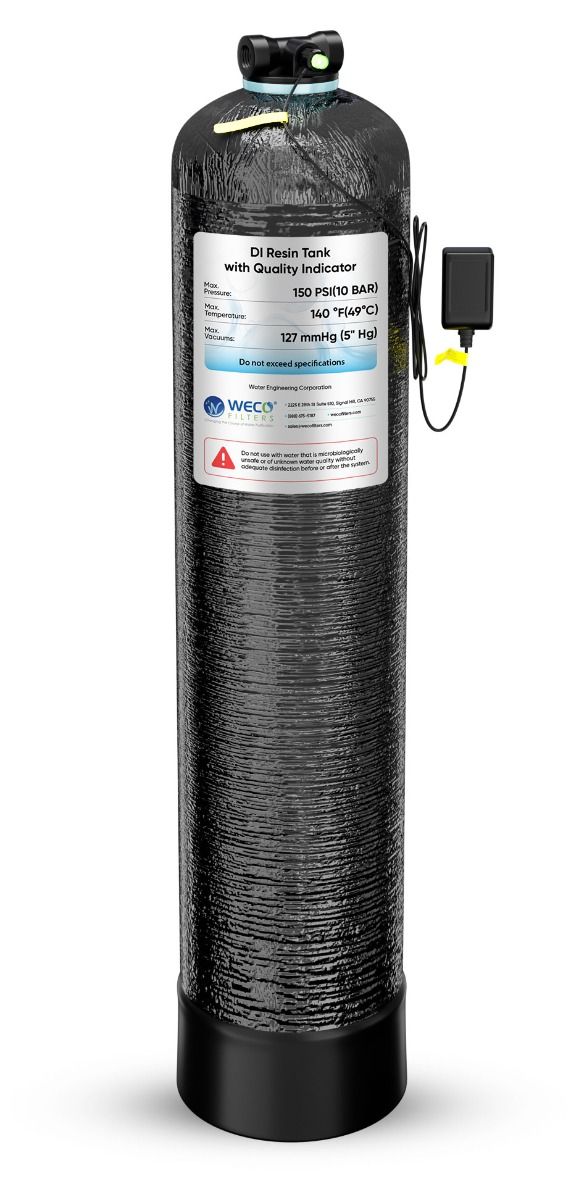

- Mixed bed deionization (DI) resin tank with a LED water quality monitor.
- A green light signifies that the water conductivity is below the threshold value, while a red light serves as a warning when it exceeds the threshold.
- Recommended peak flow ~4 GPM.
- 1 cu.ft of deionizing resin media.
- Each system includes a 110V wall power supply with a 9-foot cord for added convenience. Power supply converts 120 VAC into 9 VDC, ensuring enhanced safety and prolonged operational longevity.
Deionization (DI) Tanks
Deionization (DI) effectively removes the majority of dissolved ions and is well-suited for tasks such as RO polishing, spot-free rinsing, or any application demanding minimal dissolved solids. Custom configurations are also available. The square wave monitor presents a dependable and cost-effective method for monitoring water quality via conductivity.The easily discernible bright red or green visual display simplifies monitoring.
The system is straightforward: a green light signals that water conductivity is below the threshold value, while a red light serves as a warning if it surpasses this level. The solid-state circuitry employs a symmetrical square wave sampling voltage to prevent plating and extend the electrode's lifespan.
The LED output and solid-state circuitry have a significantly longer lifespan compared to conventional neon lamps, lasting for thousands of hours. The monitor utilizes a wall transformer to convert 120 VAC into 9 VDC, ensuring both safer operation and an extended operational life. The LED Indicator Resistivity Monitor maintains an accuracy level of ±15%. Each system includes a 110V wall power supply with a 9-foot cord for added convenience.
Standard Features
Spot Free Rinsing
DI water prevents unsightly water spots on vehicle surfaces, as it lacks mineral deposits, ensures a streak-free and pristine finish.
Window Cleaning
Using DI water for window cleaning gets you streak-free, crystal-clear results by eliminating mineral deposits and ensuring a spotless shine.
Wash Solar Panels
Rinsing solar panels with deionized water maximizes energy efficiency by preventing mineral buildup, ensuring optimal sunlight absorption.
Aquarium Water
DI water is vital for aquariums, as its purity ensures a safe and pristine environment for aquatic life, free from harmful contaminants.
Pilot Testing Boiler App-s
Utilizing DI water for pilot testing boiler feed water assures accurate results by eliminating impurities, ensuring optimal boiler performance.
Semiconductor Industry
In the semiconductor industry, DI water's ultra-purity is essential, as it prevents contaminants, ensuring flawless chip manufacturing processes.
High Purity Lab-ry Water
DI water is indispensable in laboratories, offering unmatched purity for precise experiments, chemical analyses, and maintaining equipment integrity.
Steam Iron Water
DI water is a must for steam irons and humidifiers, preventing mineral buildup, ensuring longevity, and delivering efficient performance.
DI Systems
| Model# | Mineral Tank Size |
Recommended Peak Flow |
Media Ft3 |
|---|---|---|---|
| DIBP-0918 | 9" x 18" | ~2 GPM | 0.4 |
| DIBP-1018 | 10" x 18" | ~3 GPM | 0.5 |
| DIBP-0844 | 8" x 44" | ~4 GPM | 1 |
| DIBP-0948 | 9" x 48" | ~5 GPM | 1.5 |
| DIBP-1054 | 10" x 54" | ~6 GPM | 2 |
| DIBP-1252 | 12" x 52" | ~8 GPM | 3 |
| DIBP-1354 | 13" x 54" | ~10 GPM | 3.5 |
| DIBP-1465 | 14" x 65" | ~12 GPM | 5 |
| DIBP-1653 | 16" x 53" | ~12 GPM | 5 |
| DIBP-1665 | 16" x 65" | ~15 GPM | 6 |
Add a connector set, see the Clack install part page for options
DI Systems with Resistivity Monitor
| Model# | Mineral Tank Size |
Recommended Peak Flow |
Media Ft3 |
|---|---|---|---|
| DIBRS-0918 | 9" x 18" | ~2 GPM | 0.4 |
| DIBRS-1018 | 10" x 18" | ~3 GPM | 0.5 |
| DIBRS-0844 | 8" x 44" | ~4 GPM | 1 |
| DIBRS-0948 | 9" x 48" | ~5 GPM | 1.5 |
| DIBRS-1054 | 10" x 54" | ~6 GPM | 2 |
| DIBRS-1252 | 12" x 52" | ~8 GPM | 3 |
| DIBRS-1354 | 13" x 54" | ~10 GPM | 3.5 |
| DIBRS-1465 | 14" x 65" | ~12 GPM | 5 |
| DIBRS-1653 | 16" X 53" | ~12 GPM | 5 |
| DIBRS-1665 | 16" X 65" | ~15 GPM | 6 |
Many other sizes available
Resistivity Monitor Components
| Item# | 1/2" Monitor |
|---|---|
| 39L-R73020 | 20K Ohm(~24 ppm) |
| 39L-R73050 | 50K Ohm(~10 ppm) |
| 39L-R73200 | 1 200K Ohm(~1 ppm) |
| 39L-R73500 | 500K Ohm(~1 ppm) |
| 39L-R3M | 1 Meg Ohm(~.5 ppm) |
| Item# | 3/4" Monitor |
| 39L-R74020 | 20K Ohm(~24 ppm) |
| 39L-R74050 | 50K Ohm(~10 ppm) |
| 39L-R74200 | 200K Ohm(~1 ppm) |
| 39L-R74500 | 500K Ohm(~1 ppm) |
| 39L-R4M | 1 Meg Ohm(~.5 ppm) |
| Item# | Accessories |
| 39L-7009 | 2 Monitor In/Out head,uses 1/2" Monitor. 3/4 FNPT 13/16 riser |
| 55H-402-005G | 1/2" PVC Tee for 1/2 Monitor |
| 55H-402-101G | 3/4" PVC Tee for 1/2 Monitor |
| 55H-402-131G | 3 1" PVC Tee for 1/2 Monitor |
| Resistivity(ohm-cm) | Conductivity(uS-cm) | ~TDS+15%(ppm) | Max/MinpH |
|---|---|---|---|
| 18 MEG | 0.056 | .028 | 7.8/6.2 |
| 14 MEG | 0.071 | .036 | 7.9/6.1 |
| 10 MEG | 0.1 | .5 | 8.1/5.9 |
| 6 MEG | 0.167 | .083 | 8.3/5.7 |
| 2 MEG | 0.5 | .25 | 8.8/5.2 |
| 1 MEG | 1 | .50 | 9.1/4.9 |
| 500K | 2 | 1 | 9.4/4.6 |
| 200K | 5 | 2.5 | 9.8/4.2 |
| 50K | 20 | 10 | 10.4/3.6 |
| 20K | 50 | 24 | 10.9/3.2 |
| 10K | 100 | 48 | 11.2/2.9 |
| 5K | 200 | 95 | 11.3/2.6 |
| 1K | 1000 | 500 | 12.2/1.9 |
Wall Power Supply
A 9-foot-long wall power supply ensures secure low-voltage power delivery to the resistivity monitor, guaranteeing safety and reliability.
LED Light Conductivity Monitor
The bright red or green LED is easy to read. Green light for conductivity below threshold, red for above, making monitoring simple.
NPT Threaded Ports
Crafted from durable ABS plastic, the standard 3/4" NPT female threaded port head features monitor electrodes positioned at the outlet.
Quality Mixed Bed DI Resin
WX-MB11-1CUFT mixed bed DI resin combines both cation and anion resins in a single container, efficiently producing pure water by removing all ions.
Technical Specifications
Resistivity Monitor500 K ohm/cm (2 mho/cm) Accuracy ± 15%
Port Size3⁄4” NPT
Electrode MaterialTungsten
Voltage120V Supply & 9 VDC Output with 200 mA Current (Typical DC Current 35 mA)
Maximum Temperature100 °F
Cord Length9 feet
| UPC | 670087223038 |
|---|
