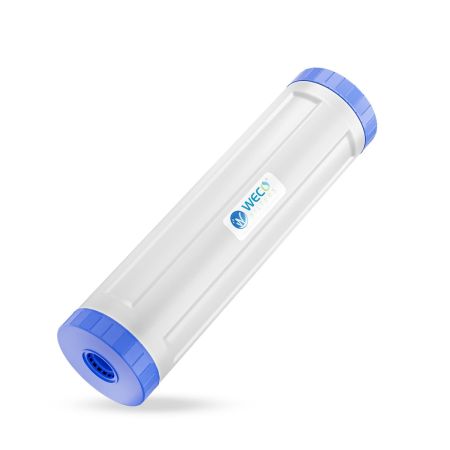

- WECO CALC-MOX-2045 Calcium Carbonate & Magnesium Oxide 4 ½ " x 20" Water Filter Cartridge for Neutralization.
- Calcite 60% | MagnOx 30% | AFD 5%.
- Capacity ≈15,000 Gallons @ 2 GPM peak flow.
- Cartridge Weight 15 lb 7 oz.
- Rinse the cartridge thoroughly to remove residual color and fines. Do not use with water that is microbiologically unsafe without adequate disinfection before or after the system. Flow rates and capacities are estimates only.
- Available in a nearly limitless number of configurations, contact WECO to discuss your custom blend. Filters come standard in white color. Filters are individually labeled and boxed or without box and/or label upon request.
- Custom labeling available.
Grease Sump Seal
1Apply food-grade silicone grease to lubricate the O-ring and threads on the sump, then proceed to install the O-ring in the filter sump.
Sump Thread Lube
2Lubrication of the sump threads will assist in the easy removal of the sump when it's time to change the drop-in filter cartridge.
Cartridge Alignment
3Place the filter cartridge into the sump and align it with the notch at the housing's bottom.
Complete Installation
4Place the sump into the filter cap and turn clockwise to secure the filter. Hand-tighten, then use the provided wrench for an extra quarter turn.
Specifications
| Models | Media | ≈Peak GPM | Capacity (gallons) | Primary Functions |
|---|---|---|---|---|
| CALC-2045 | Calcium Carbonate| Magnesium Oxide| AFD | 2 | ≈15,000 Gallons | Neutralization |
| UPC | 670087223595 |
|---|
