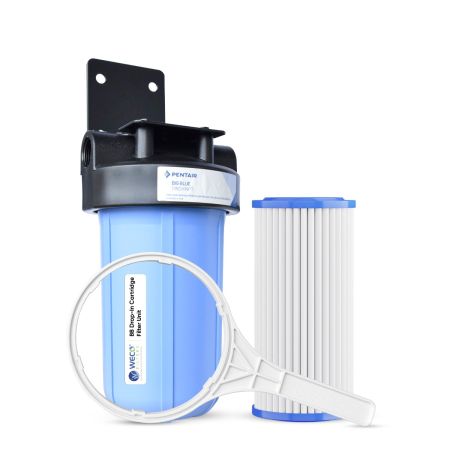

WECO BB-10SED Big Blue Water Filter System for Sediment Filtration

WECO BB-20SED Big Blue Water Filter System For Sediment Capture

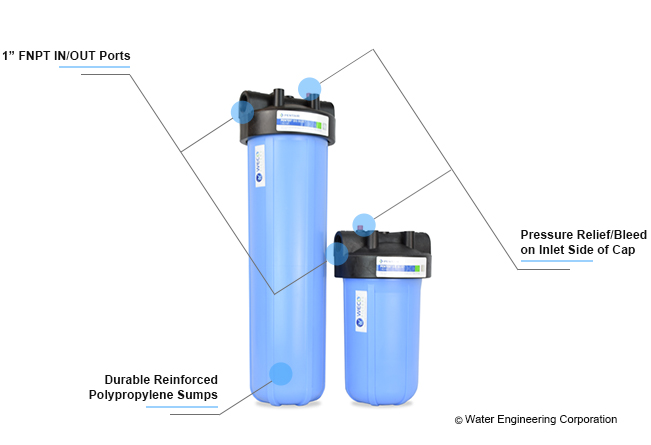

The WECO Big Blue sediment filter is designed for Point Of Entry (POE) industrial and residential filtration applications. The rugged reinforced polypropylene housing holds a 20-inch sediment filter cartridge. The pleated polyester filter cartridge is a premium sediment filter used in ultra-pure filtration applications. The sediment cartridge removes sand, grit, precipitated mineral particles, insoluble iron oxide and other debris down to 5 microns. The Big Blue sediment filter housing has 1” female NPT in and out connections that support high flow rates. The pressure relief button allows for easy air bleeding and cartridge change-outs. The WECO BB-20SED sediment filter is the ideal solution for removing harmful sediment from residential and commercial water supplies.

The BB-20SED protects all water-using appliances, such as dish washing machines, clothes washers, and ice makers from damage and clogging. Abrasive particulate matter will prematurely wear out faucet seals, O-rings, pumps and solenoid valves used in dish washing machines and clothes washers. Sand grains, grit and iron oxide clog the fine screens and tubing used in commercial coffee makers, expresso machines and beverage dispensers. The BB-20SED is recommended for sensitive medical and dental equipment to ensure trouble-free operation and reduced maintenance costs.

The WECO Big Blue Sediment Water Filter will also serve as a high-capacity pre-filter to protect whole house and commercial reverse osmosis systems, water softeners and WECO specialty filtration systems.

BB-10SED

BB-10CAB

BB-10GAC

BB-20SED

BB-20CAB

BB-20GAC

Parts & Hardware Included

AValveinHead Filter System
BBlack O-Ring

CFilter Cartridge DFilter Housing Wrench

Tools & Materials Required

• Compression Fittings/Valves (not included)
• Two Adjustable Wrenches
• Pipe Wrench
• Pipe Cutter or Hacksaw

• Pan or Bucket
• File
• Pencil
• Plumber’s Tape
• Silicone Grease

We recommend a 3-way bypass installation using 3 ball valves. The picture shows the unit in "Service" position. Valves on the left and the right are open; center valve is closed. Water flows through the filter.

To bypass, close the right and left valves and open the center. Water flows around the filter.

The bypass will work without the right or the left valve, but it's best to have both because it allows isolation of the filter completely from the house plumbing if desired.

Replacement Filters & Parts

Sediment Filters

These pleated filter cartridges efficiently decrease the levels of dirt, silt, rust, and other sediment in the water at flow rates higher than those achieved by traditional melt-blown sediment filters.

Carbon Block Filters

Carbon block water filters are designed to remove various contaminants from drinking water. They work by utilizing activated carbon, which is known for its excellent adsorption properties. Carbon blocks are used for chlorine and chemical reduction, organic compounds reduction, heavy metal reduction, improving taste and odor of the water and making it more palatable

Specialty Media Filters

Our specialty cartridges are ideal for specialized uses and for conducting pilot tests on water treatment media before transitioning to full-scale applications with backwashing or simple in-out style mineral tanks. Check our website for more information including service flow rates recommended for each filter

Accessories

Single Wall Bracket Part # BW1

Replacement O-Ring Part # O-RING-BB

O-ring Lubricant Part # 862

Housing Wrench Part # SW-4
