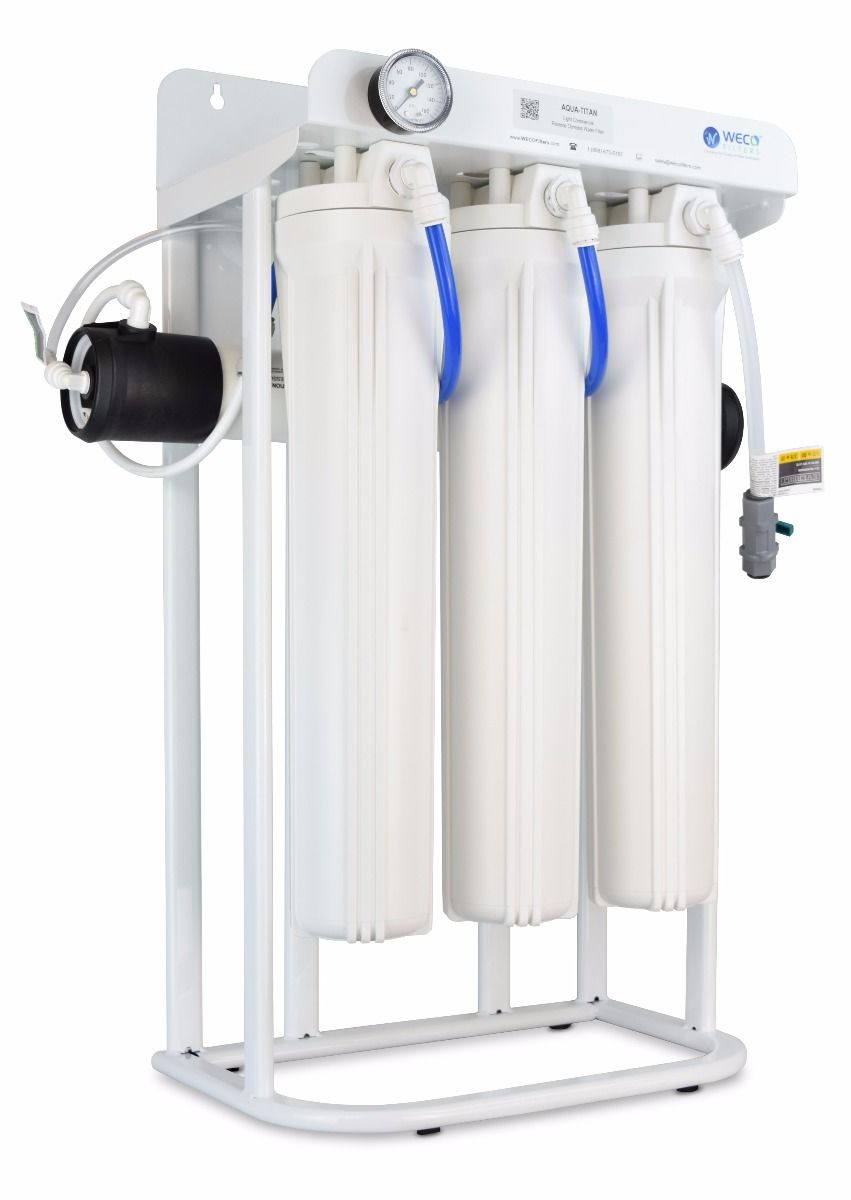

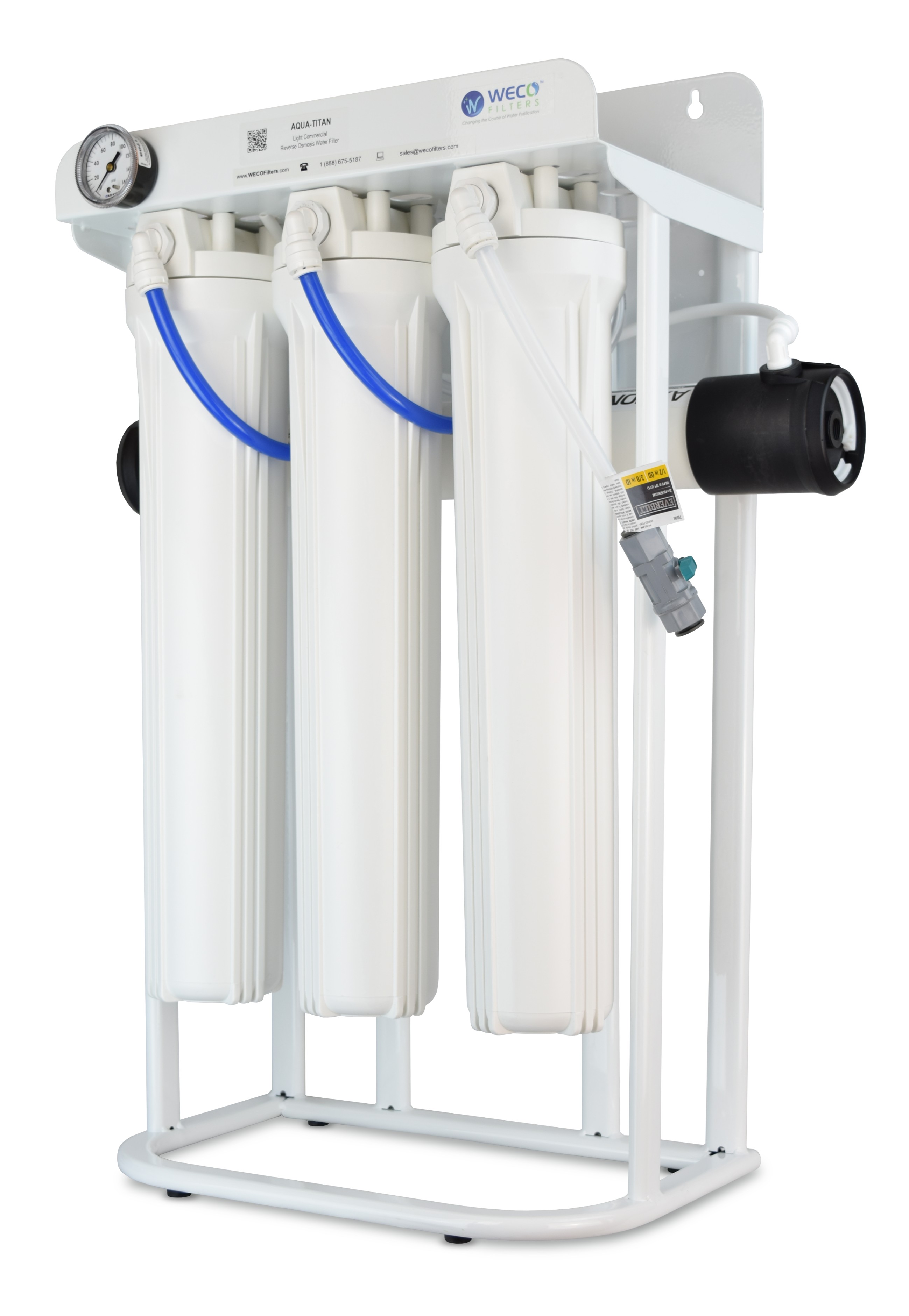

WECO AQUA-TITAN-0400 Light Commercial Reverse Osmosis Filter System
- Ultra low energy reverse osmosis drinking water purification system for residential and light commercial applications
- Sediment and compressed carbon block pre-filtration removes tiny particles like rust, silt, taste and odor-causing chemicals like chlorine, chloramine and rotten-egg odors.

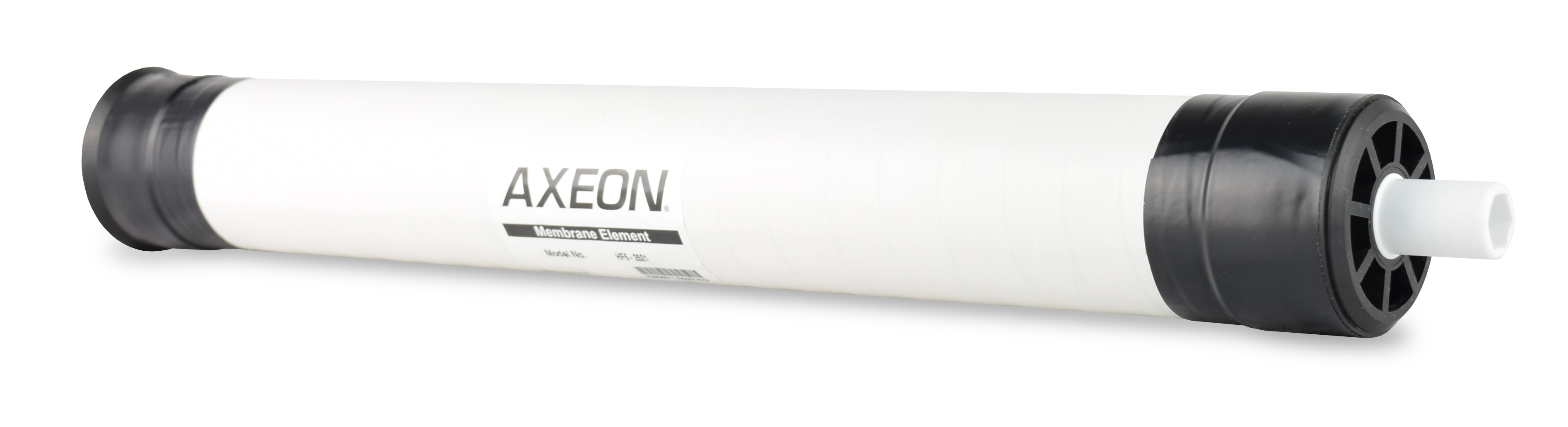

- High-efficiency AXEON® HF5 – Series Thin Film Composite reverse osmosis membrane removes up to 98.5% of water contaminants like nitrate, TDS, fluoride, lead, sodium and mercury
- Concentrate valve
- Produces 400 gallons per day at 80 PSI (5.52 bar)
- Ideal for residential use, medical offices, laboratories, schools, aquariums and hydroponic growing operations.
Description
WECO Aqua-Titan light commercial reverse osmosis filter uses four stages of water filtration to create pure drinking water, ideal for residential use, medical offices, laboratories, schools, aquariums and hydroponic growing operations. The process starts by removing tiny particles like rust, silt and insect parts. This protects your family and prevents the filtration systems from clogging. Next, the water flows through activated carbon block cartridges. These compressed carbon block filters remove taste and odor-causing chemicals like chlorine, chloramine and rotten-egg odors. Chlorine disinfection process can create cancer-causing byproducts in the water. These carcinogens, called THMs, are removed by the carbon filters. The carbon cartridges also remove organic contaminants like herbicides, insecticides and industrial chemicals that seep into groundwater. The next step involves the reverse osmosis (RO) process. Here water is “squeezed” through a special membrane. Heavy metals, like lead and mercury, are removed while purified water passes through. The RO process also removes salts, fluoride, radon and benzene. The Aqua-Titan makes refreshing water the whole family will enjoy. Aqua-Titan filtration system is pre-assembled can be installed with simple hand tools. We recommend installation by a licensed plumber to insure adherence to all local codes. Routine replacement of the filter cartridges is recommended to maintain filter performance.
Applications
- Commercial/Industrial drinking water purification
- Hydroponic plant growing operations, Greenhouses
- Large Aquariums
- Breweries
- Nursing homes, Health facilities
- Laboratories (Aqua-Titan DI Models)
- Ideal for anyone health-conscious and concerned about drinking water quality
Filter Cartridges
AQUA-TITAN Reverse Osmosis Water Filtration System
Contaminants Removed
- Sediment Filter - Up to 99% sediment and particulates (5 microns and higher)
- Carbon Filter - Up to 99% of chlorine, radon and volatile organic compounds
- Thin Film Composite Membrane
| Sodium | 90-95% |
| Aluminum | 93-98% |
| Magnesium | 93-98% |
| Potassium | 90-95% |
| Iron 2 | 93-98% |
| Manganese 2 | 93-98% |
| Calcium | 93-98% |
| Copper | 94-99% |
| Silver | 93-98% |
| Zinc | 93-98% |
| Strontium | 93-98% |
| Cadmium | 93-98% |
| Nickel | 93-98% |
| Mercury | 93-98% |
| Radioactivity | 93-98% |
| Chromium-6 | 94-99% |
| Chromium-3 | 94-99% |
| Lead | 94-99% |
| Chloride | 90-95% |
| Bicarbonate | 90-95% |
| Nitrate3 | 85-90% |
| Fluoride | 90-97% |
| Phosphate | 93-98% |
| Chromate | 90-95% |
| Cyanide | 90-95% |
| Sulfate | 93-98% |
| Boron | 55-60% |
| Arsenic + 3 | 70-80% |
| Arsenic + 5 | 94-99% |
| Selenium | 93-98% |
| Barium | 93-98% |
| Sediment | > 99% |
| Protozoa | > 99% |
| Ameobic- | > 99% |
| Cysts | > 99% |
| Turbidity | > 99% |
| Asbestos | > 99% |
| Bacteria | > 99% |
| Giardia | > 99% |
* Source: water quality association, www.wqa.org
** 60 psi net pressure and 77° F water temperature
*** Performance depends on condition of feed water
Specifications & Operating Limits
| Max. Filtered Water Flow (gpm) | 0.27 @ 550 ppm TDS, 77 °F |
| Max. Hardness | 10 Grains @ 6.9 pH |
| Max. TDS (ppm) | 2000 |
| Automatic Shut-Off | Yes |
| Filter Life | 6 Months or 900 gallons for pre-filters 24 Months for membrane with proper pre-treatment |
| Feed Water pH Limits | 4-10 |
| Feed Water Pressure (psi) | 40 Min - 125 Max. |
| Feed Water Temperature | 40-100 °F |
| Fittings | 3/8" - Push to Connect |
| Plumbing Connections | 3/8" |
| Water Inlet | 3/8" |
| Capacity | |
|---|---|
| Filtered Water Output | 400 gal/day |
| Pre/Post Filter Life | 20,000 Gallons |
| Appearance | |
|---|---|
| Color Appearance | White |
| Filter Housing | White Slimline (2.5"D x 20") |
| Installation | 3/8" Quick Connect |
| Unit Color | White |
| System Mounting Orientation | Floor Standing |
| Weights & Dimensions | |
|---|---|
| Overall Depth | 12.0 in |
| Overall Height | 34.0 in |
| Overall Width | 15.0 in |
| Approximate Shipping Weight | 70.0 lb |
| Net Weight | 70.0 lb |
| Accessories | |
|---|---|
| Icemaker Connection Kit | IM25EZ (Available at Additional Cost) |
| Installation Kit | Included |
| Replacement Pre-Filters | AQUA-TITAN-SET3 |
| Replacement Membrane | HF5-2521 |
| Warranty | |
|---|---|
| Parts Warranty | Limited 1-year |
| Power/Ratings |
|---|
| - |
| Filter | |
|---|---|
| App Filter - Product Type | Filtration Reverse Osmosis |
| UPC | 810388031127 |
|---|
