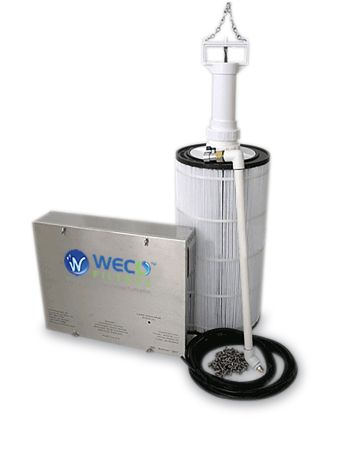

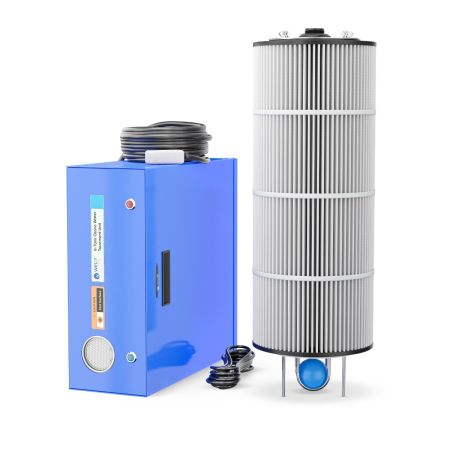

In Tank Complete Ozone Disinfection System Kit - 110 V - Typical for 500 to 10,000 Gallon Tanks
- Tank Compatibility: Suitable for atmospheric water storage tanks ranging from 500 to 10,000 gallons.
- Automatic Desiccant Drying: Integrated regenerating desiccant dryer automatically dries the desiccant based on a timer.
- High-Efficiency Filtration: Pleated filter significantly reduces contaminant loading in the tank, installable up to 30 feet deep with additional chain and tubing.
- Powerful Ozone Output: 440 mg/hr ozone output using PCS Corona Discharge technology.
- Compact Design: 16" tall, 16" wide, and 7" deep.
- Energy-Efficient Operation: 110v AC, 5 Amps Max power consumption.
- Effective Water Treatment: Ideal for reducing iron, manganese, bacteria, hydrogen sulfide, and unpleasant tastes.
The IOZ-10K10K system is a cutting-edge device engineered for ozone production. It employs Pulse Corona Discharge (PCD) technology, where high-voltage, low-current electrical arcs pass through an air space.
This process splits oxygen (O2) molecules, creating "free" oxygen atoms that rapidly bind with intact O2 molecules, forming ozone (O3). This extra oxygen atom grants ozone its powerful oxidation properties. The IOZ-10K10K system delivers an ozone output of approximately 440mg/hr.
Effective corona discharge necessitates clean, dry air. To ensure this, the system incorporates an automated desiccant system that dries the air and recharges autonomously.
Hot surface. Do not touch. Allow to cool before servicing.
Only qualified personnel should be allowed to set up, maintain and operate this equipment
Contaminants and the Weco Ozone Unit
The BroncOzone 10K system can mitigate many contaminants from the water through the use of ozonized air.
Specifications
| Ozone Output | Power | Desiccant | Box Unit Dimensions |
|---|---|---|---|
| 440 mg/hr. PCS Corona Discharge | 110v AC, 5 Amps Max | Auto Regenerating with Heated Module | 16” Tall, 16” Wide, 7” Deep |
Professional Plumbing Support Recommended for Installation
Water pressure can cause leaks and damage the surrounding building or fixtures if not properly installed. User must check all fittings for tightness. WECO assumes no responsibility for water damage due to leaks.
Filtering Well Water?
Prior to placing an order, provide us with a comprehensive water quality analysis of your private well for a customized solution.
Alternatively, choose our basic well water test kit, and we will conduct the test on your behalf
| UPC | 32733545312 |
|---|
