- Tanks Comply with 21CFR 177.1520(1) 3.1 and 3.2 for Storage of Potable Water.
- 1½ Inch Inlet & 2 Inch Outlet Bulkhead Poly Tank Fittings.
- 16" Vented Manway

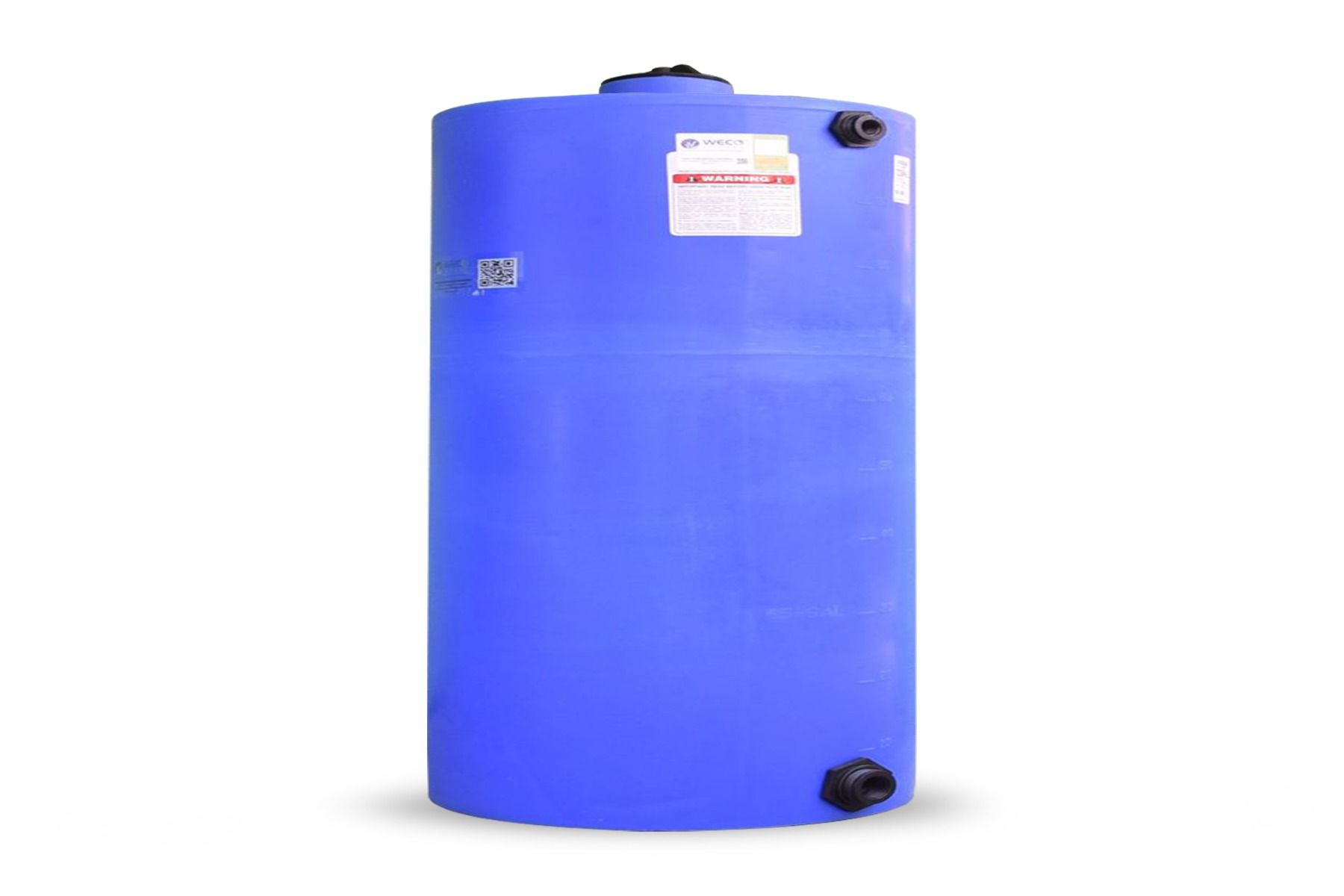

WECO Atmospheric Water Storage Tank for Potable Water
Tanks comply with U.S. Food and Drug Administration 21CFR 177.1520(1) 3.1 and 3.2 for storage of potable water.
For Optional Features Below Call 1 (888) 675-5187
Call or chat with us for these available options
WECO Atmospheric Tank Specifications
| Model | Capacity (gallons) | Width (in) | Height (in) | Empty Weight (lbs.) | Inlet Connection | Outlet Connection | Vented Manway (in) |
|---|---|---|---|---|---|---|---|
| 61-TKT01U | 100 | 23 | 64 | 75 | 1" Bulkhead NPT | 1½" Bulkhead NPT | 8 |
| 61-TKT03U | 300 | 36 | 85 | 80 | 1½" Bulkhead NPT | 2" Bulkhead NPT | 16 |
| 61-TKT05U | 500 | 46 | 76 | 110 | 1½" Bulkhead NPT | 2" Bulkhead NPT | 16 |
| 61-TKT10U | 1000 | 64 | 88 | 180 | 1½" Bulkhead NPT | 2" Bulkhead NPT | 16 |
- *U = Blue. W = White. G = Green. K = Black. 100, 300 and 500 Gallon Blue tanks are typically stocked and ready to ship.
| UPC | 648620101006 |
|---|
